欧美进口CTS差分377晶振,压控LVDS输出晶振,377LB3C2048T交换机专用差分晶振

频率:204.8MHZ

尺寸:7.0mm x 5.0mm

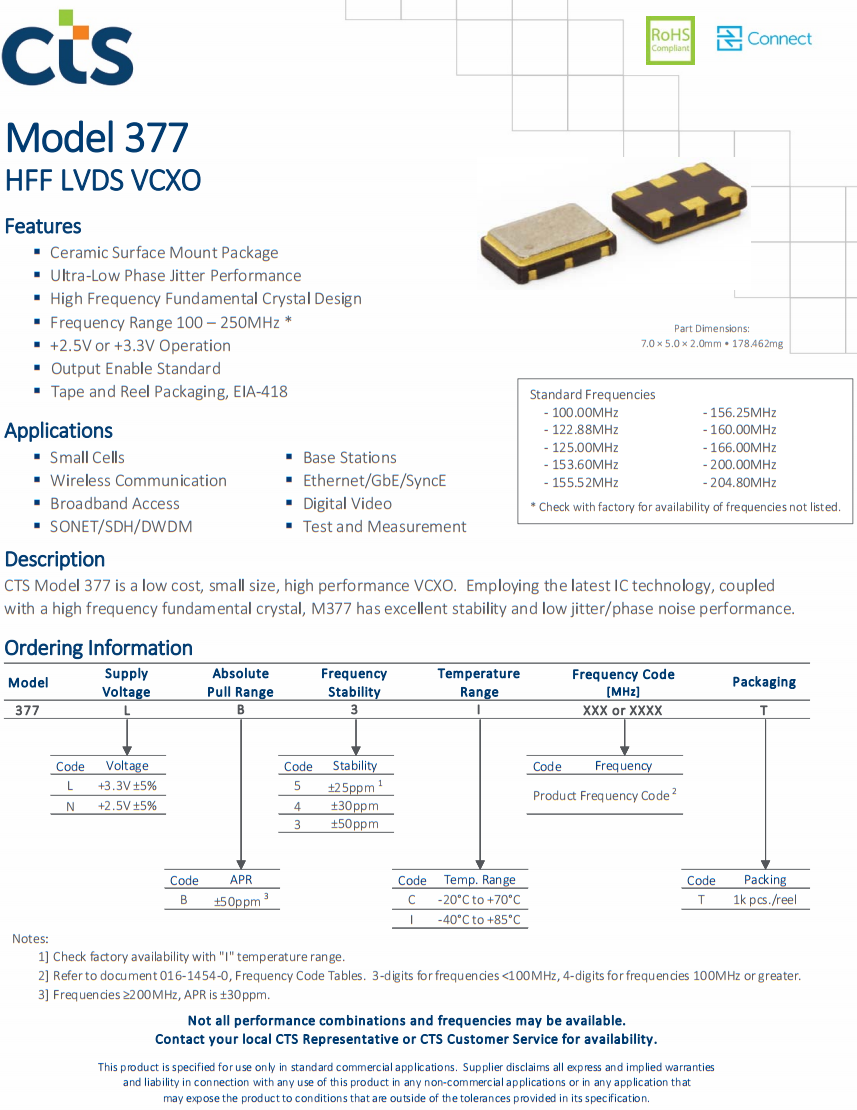

欧美进口CTS差分377晶振,压控LVDS输出晶振,377LB3C2048T交换机专用差分晶振,美国西迪斯晶振公司,CTS晶振,  CTS Model 377是一款低成本、小尺寸、高性能的VCXO。采用最新的IC技术,加上高频基频晶体,M377具有出色的稳定性和低抖动/相位噪声性能。陶瓷表面贴装封装,超低相位抖动性能,高频基频晶体设计,频率范围100 - 250MHz *,+2.5V或+3.3V操作,输出使能标准,磁带和卷轴包装,EIA-418,无线通信,宽带接入,SONET / SDH /密集波分复用基站,对以太网/ GbE / SyncE,数字视频,测试与测量
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

1

欧美进口CTS差分377晶振,压控LVDS输出晶振,377LB3C2048T交换机专用差分晶振,美国西迪斯晶振公司,CTS晶振,  CTS Model 377是一款低成本、小尺寸、高性能的VCXO。采用最新的IC技术,加上高频基频晶体,M377具有出色的稳定性和低抖动/相位噪声性能。陶瓷表面贴装封装,超低相位抖动性能,高频基频晶体设计,频率范围100 - 250MHz *,+2.5V或+3.3V操作,输出使能标准,磁带和卷轴包装,EIA-418,无线通信,宽带接入,SONET / SDH /密集波分复用基站,对以太网/ GbE / SyncE,数字视频,测试与测量
2

欧美进口CTS差分377晶振,压控LVDS输出晶振,377LB3C2048T交换机专用差分晶振

参数 标志 环境 最小值 典型的 最大值 单位
最大电源电压    VCC - -0 .3 - 5.0 V
最大控制电压     VC - -0 .5 - VCC V
电源电压     VCC ±5% 3.14
2.38
3.3
2.5
3.47
2.63
V
源电流     ICC LVDS Load - 20 55 mA
输出负载      RL Between Outputs - 100 - Ohms
工作温度      TA - -20
-40
+25 +70
+85
°C
储存温度    TSTG - --40 - +100 °C
频率 O - 100 - 250 MHz
频率容差 Δf/fO ±25ppm stability, -20°C to +70°C only 25, 30 or 50 ±ppm
绝对拉力范围 APR

APR
Frequencies <200MHz
Frequencies ≥200MHz
50
30
-

-
-

-
±ppm
±ppm
老化 Δf/f25 First Year @ +25°C, nominal VCC  and VC --3 - 3 ppm
输出类型 - - LVDS -
输出电压水平 VOH
VOL
LVDS Load
LVDS Load
-

0.90
1.43
1.10
1.60
-
V
差分输出电压 VOD RL  = 100 Ohms 247 350 454 mV
偏移电压 VOS RL  = 100 Ohms 1.125 1.25 1.375 V
输出占空比 SYM @ 1 .25V 45 - 55 %
上升和下降时间 TR, TF @ 20%/80% Levels - 0.4 1.0 ns
启动时间 TS Application of VCC - 5 10 ms
相位抖动,RMS tjrms Bandwidth 12kHz - 20MHz - 70 200 fs
相位噪音 - See Typical Plots - - - -
控制电压 VC VCC  = +3 .3V
VCC  = +2 .5V
0.00
0.25
1.65
1.25
    3.30
    2.25
V

V
频率差异 Δf/fO VC  = 0 .0V - 155 to -75
VC  = +3 .3V 75 to 155 ppm
VC  = 0 .0V - 140 to -50
VC  = +2 .5V 50 to 140 ppm
线性 L Best Straight Line Fit - 5 10 %
增益转移 KV Pull Sensitivity; @ +1 .65V, +25°C
Pull Sensitivity; @ +1 .25V, +25°C
-
-
75
75
-
-
ppm/V
ppm/V
输入阻抗 ZVc - 10 - - MOhms
调制卷取 - @ -3dB 20 - - kHz

3

欧美进口CTS差分377晶振,压控LVDS输出晶振,377LB3C2048T交换机专用差分晶振

377 7050 VCXO

377

377(11)


CTS原厂编码 生产商 型号 类型 频率 输出类型 电压 频率偏差度
377LB3C1000T CTS晶振 377 VCXO 100 MHz LVDS 3.3V ±50ppm
377LB3C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 3.3V ±50ppm
377LB3C1250T CTS晶振 377 VCXO 125 MHz LVDS 3.3V ±50ppm
377LB3C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 3.3V ±50ppm
377LB3C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 3.3V ±50ppm
377LB3C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 3.3V ±50ppm
377LB3C1660T CTS晶振 377 VCXO 166 MHz LVDS 3.3V ±50ppm
377LB3C2000T CTS晶振 377 VCXO 200 MHz LVDS 3.3V ±50ppm
377LB3C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 3.3V ±50ppm
377LB3C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 3.3V ±50ppm
377LB3I1000T CTS晶振 377 VCXO 100 MHz LVDS 3.3V ±50ppm
377LB3I1228T CTS晶振 377 VCXO 122.88 MHz LVDS 3.3V ±50ppm
377LB3I1250T CTS晶振 377 VCXO 125 MHz LVDS 3.3V ±50ppm
377LB3I1536T CTS晶振 377 VCXO 153.6 MHz LVDS 3.3V ±50ppm
377LB3I1555T CTS晶振 377 VCXO 155.52 MHz LVDS 3.3V ±50ppm
377LB3I1562T CTS晶振 377 VCXO 156.25 MHz LVDS 3.3V ±50ppm
377LB3I1660T CTS晶振 377 VCXO 166 MHz LVDS 3.3V ±50ppm
377LB3I2000T CTS晶振 377 VCXO 200 MHz LVDS 3.3V ±50ppm
377LB3I2048T CTS晶振 377 VCXO 204.8 MHz LVDS 3.3V ±50ppm
377LB3I2457T CTS晶振 377 VCXO 245.76 MHz LVDS 3.3V ±50ppm
377LB5C1000T CTS晶振 377 VCXO 100 MHz LVDS 3.3V ±25ppm
377LB5C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 3.3V ±25ppm
377LB5C1250T CTS晶振 377 VCXO 125 MHz LVDS 3.3V ±25ppm
377LB5C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 3.3V ±25ppm
377LB5C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 3.3V ±25ppm
377LB5C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 3.3V ±25ppm
377LB5C1660T CTS晶振 377 VCXO 166 MHz LVDS 3.3V ±25ppm
377LB5C2000T CTS晶振 377 VCXO 200 MHz LVDS 3.3V ±25ppm
377LB5C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 3.3V ±25ppm
377LB5C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 3.3V ±25ppm
377LB5I1000T CTS晶振 377 VCXO 100 MHz LVDS 3.3V ±25ppm
377LB5I1228T CTS晶振 377 VCXO 122.88 MHz LVDS 3.3V ±25ppm
377LB5I1250T CTS晶振 377 VCXO 125 MHz LVDS 3.3V ±25ppm
377LB5I1536T CTS晶振 377 VCXO 153.6 MHz LVDS 3.3V ±25ppm
377LB5I1555T CTS晶振 377 VCXO 155.52 MHz LVDS 3.3V ±25ppm
377LB5I1562T CTS晶振 377 VCXO 156.25 MHz LVDS 3.3V ±25ppm
377LB5I1660T CTS晶振 377 VCXO 166 MHz LVDS 3.3V ±25ppm
377LB5I2000T CTS晶振 377 VCXO 200 MHz LVDS 3.3V ±25ppm
377LB5I2048T CTS晶振 377 VCXO 204.8 MHz LVDS 3.3V ±25ppm
377LB5I2457T CTS晶振 377 VCXO 245.76 MHz LVDS 3.3V ±25ppm
377LB6C1000T CTS晶振 377 VCXO 100 MHz LVDS 3.3V ±20ppm
377LB6C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 3.3V ±20ppm
377LB6C1250T CTS晶振 377 VCXO 125 MHz LVDS 3.3V ±20ppm
377LB6C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 3.3V ±20ppm
377LB6C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 3.3V ±20ppm
377LB6C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 3.3V ±20ppm
377LB6C1660T CTS晶振 377 VCXO 166 MHz LVDS 3.3V ±20ppm
377LB6C2000T CTS晶振 377 VCXO 200 MHz LVDS 3.3V ±20ppm
377LB6C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 3.3V ±20ppm
377LB6C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 3.3V ±20ppm
377NB3C1000T CTS晶振 377 VCXO 100 MHz LVDS 2.5V ±50ppm
377NB3C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 2.5V ±50ppm
377NB3C1250T CTS晶振 377 VCXO 125 MHz LVDS 2.5V ±50ppm
377NB3C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 2.5V ±50ppm
377NB3C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 2.5V ±50ppm
377NB3C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 2.5V ±50ppm
377NB3C1660T CTS晶振 377 VCXO 166 MHz LVDS 2.5V ±50ppm
377NB3C2000T CTS晶振 377 VCXO 200 MHz LVDS 2.5V ±50ppm
377NB3C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 2.5V ±50ppm
377NB3C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 2.5V ±50ppm
377NB3I1000T CTS晶振 377 VCXO 100 MHz LVDS 2.5V ±50ppm
377NB3I1228T CTS晶振 377 VCXO 122.88 MHz LVDS 2.5V ±50ppm
377NB3I1250T CTS晶振 377 VCXO 125 MHz LVDS 2.5V ±50ppm
377NB3I1536T CTS晶振 377 VCXO 153.6 MHz LVDS 2.5V ±50ppm
377NB3I1555T CTS晶振 377 VCXO 155.52 MHz LVDS 2.5V ±50ppm
377NB3I1562T CTS晶振 377 VCXO 156.25 MHz LVDS 2.5V ±50ppm
377NB3I1660T CTS晶振 377 VCXO 166 MHz LVDS 2.5V ±50ppm
377NB3I2000T CTS晶振 377 VCXO 200 MHz LVDS 2.5V ±50ppm
377NB3I2048T CTS晶振 377 VCXO 204.8 MHz LVDS 2.5V ±50ppm
377NB3I2457T CTS晶振 377 VCXO 245.76 MHz LVDS 2.5V ±50ppm
377NB5C1000T CTS晶振 377 VCXO 100 MHz LVDS 2.5V ±25ppm
377NB5C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 2.5V ±25ppm
377NB5C1250T CTS晶振 377 VCXO 125 MHz LVDS 2.5V ±25ppm
377NB5C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 2.5V ±25ppm
377NB5C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 2.5V ±25ppm
377NB5C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 2.5V ±25ppm
377NB5C1660T CTS晶振 377 VCXO 166 MHz LVDS 2.5V ±25ppm
377NB5C2000T CTS晶振 377 VCXO 200 MHz LVDS 2.5V ±25ppm
377NB5C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 2.5V ±25ppm
377NB5C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 2.5V ±25ppm
377NB5I1000T CTS晶振 377 VCXO 100 MHz LVDS 2.5V ±25ppm
377NB5I1228T CTS晶振 377 VCXO 122.88 MHz LVDS 2.5V ±25ppm
377NB5I1250T CTS晶振 377 VCXO 125 MHz LVDS 2.5V ±25ppm
377NB5I1536T CTS晶振 377 VCXO 153.6 MHz LVDS 2.5V ±25ppm
377NB5I1555T CTS晶振 377 VCXO 155.52 MHz LVDS 2.5V ±25ppm
377NB5I1562T CTS晶振 377 VCXO 156.25 MHz LVDS 2.5V ±25ppm
377NB5I1660T CTS晶振 377 VCXO 166 MHz LVDS 2.5V ±25ppm
377NB5I2000T CTS晶振 377 VCXO 200 MHz LVDS 2.5V ±25ppm
377NB5I2048T CTS晶振 377 VCXO 204.8 MHz LVDS 2.5V ±25ppm
377NB5I2457T CTS晶振 377 VCXO 245.76 MHz LVDS 2.5V ±25ppm
377NB6C1000T CTS晶振 377 VCXO 100 MHz LVDS 2.5V ±20ppm
377NB6C1228T CTS晶振 377 VCXO 122.88 MHz LVDS 2.5V ±20ppm
377NB6C1250T CTS晶振 377 VCXO 125 MHz LVDS 2.5V ±20ppm
377NB6C1536T CTS晶振 377 VCXO 153.6 MHz LVDS 2.5V ±20ppm
377NB6C1555T CTS晶振 377 VCXO 155.52 MHz LVDS 2.5V ±20ppm
377NB6C1562T CTS晶振 377 VCXO 156.25 MHz LVDS 2.5V ±20ppm
377NB6C1660T CTS晶振 377 VCXO 166 MHz LVDS 2.5V ±20ppm
377NB6C2000T CTS晶振 377 VCXO 200 MHz LVDS 2.5V ±20ppm
377NB6C2048T CTS晶振 377 VCXO 204.8 MHz LVDS 2.5V ±20ppm
377NB6C2457T CTS晶振 377 VCXO 245.76 MHz LVDS 2.5V ±20ppm
6
