测试设备6G晶振,ABM3B-12.000MHZ-12-B4H-T,Abracon高精度晶振
频率：12.000MHz
尺寸：5.0x3.2x1.1mm
测试设备6G晶振,ABM3B-12.000MHZ-12-B4H-T,Abracon高精度晶振，Abracon艾博康晶振，欧美进口晶振，型号：ABM3B系列，编码为：ABM3B-12.000MHZ-12-B4H-T，频率为：12.000MHz，是一款小体积晶振尺寸：5.0x3.2x1.1mm陶瓷SMD封装，四脚贴片晶振，石英晶体谐振器，SMD晶体，无源晶振，石英晶体，无铅环保晶振，工作温度范围：-20℃至+70℃。特征：基本的模式，适用于回流，紧密的稳定性，陶瓷封装和金属盖保证了高精度和可靠性，接缝密封。石英晶振超小型，轻薄型石英晶体谐振器，应用于：移动电话晶振，寻呼机，通信设备晶振，测试设备，高密度的应用程序，PCMCIA和无线应用程序。
测试设备6G晶振,ABM3B-12.000MHZ-12-B4H-T,Abracon高精度晶振 参数表
ABRACON P/N
ABM3B Series
Frequency Range
8.0MHz - 50.0MHz (Fundamental
50. 1MHz - 125MHz (3rd overtone)
Operation Mode
Fundamental or 3rd overtone
Operating Temperature
- 10°C to + 60°C (see options)
Storage Temperature
- 40°C to + 85°C
Frequency Tolerance @ 25°C
± 50 ppm max. (see options)
Frequency Stability over the
Operating Temperature
(Ref to + 25°C)
± 50 ppm max. (see options)
Equivalent Series Resistance
See table 1
Shunt Capacitance C0
7 pF max.
Load Capacitance CL
18 pF (see options)
Drive Level
100 µW max., 10 µW typical
Aging (First Year) @ 25°C ± 3°C
± 5ppm max.
Insulation Resistance
500 MΩ min at 100Vdc ± 15 V

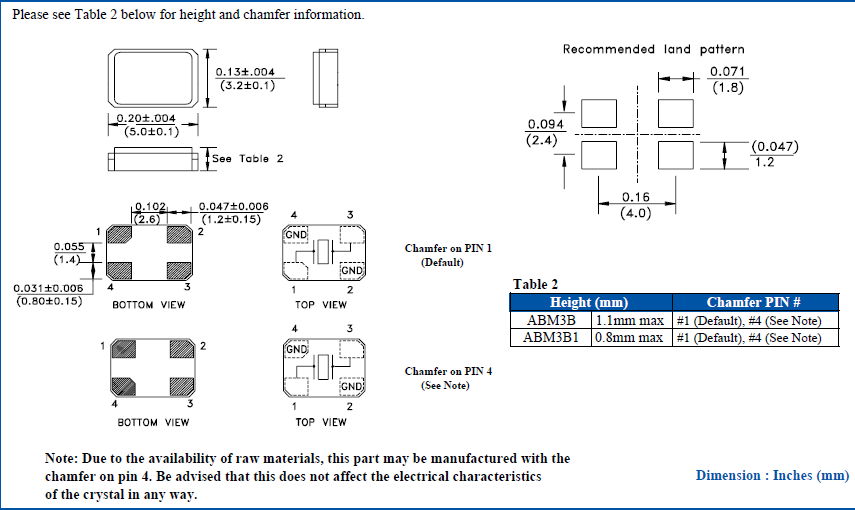

测试设备6G晶振,ABM3B-12.000MHZ-12-B4H-T,Abracon高精度晶振 尺寸图
测试设备6G晶振,ABM3B-12.000MHZ-12-B4H-T,Abracon高精度晶振
产品特点：
小型尺寸：5.0x3.2x1.1mm四脚贴片晶振
基本的模式，适合回流
紧密稳定性
陶瓷封装和金属盖保证了高精度和可靠性
接缝密封
应用于：移动电话，寻呼机，通信和测试设备，高密度的应用程序，PCMCIA和无线应用程序
| 晶振料号 | 品牌 | 型号 | 系列 | 频率 | 包装/封装 |
| ABM3B-8.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 8MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-20.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM3B-8.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 8MHz | 4-SMD, No Lead |
| ABM3B-16.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 16MHz | 4-SMD, No Lead |
| ABM3B-16.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 16MHz | 4-SMD, No Lead |
| ABM3B-10.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 10MHz | 4-SMD, No Lead |
| ABM3B-20.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-B4Y-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-18.432MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 18.432MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-R60-D-1-W-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-155-12.800MHZ-T | Abracon晶振 | ABM3B | MHz Crystal | 12.8MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-D-1-W-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-10-D1G-T | 5032晶振 | ABM3B | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-12-B4H-T | Abracon晶振 | ABM3B | MHz Crystal | 12MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-10-D2H-T | Abracon晶振 | ABM3B | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-N-2-X-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-30.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM3B-14.31818MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 14.31818MHz | 4-SMD, No Lead |
| ABM3B-13.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 13MHz | 4-SMD, No Lead |
| ABM3B-16.384MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 16.384MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-24.576MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM3B-27.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 27MHz | 4-SMD, No Lead |
| ABM3B-18.432MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 18.432MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-26.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 26MHz | 4-SMD, No Lead |
| ABM3B-13.560MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 13.56MHz | 4-SMD, No Lead |
| ABM3B-14.7456MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 14.7456MHz | 4-SMD, No Lead |
| ABM3B-30.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM3B-11.0592MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 11.0592MHz | 4-SMD, No Lead |
| ABM3B-8.000MHZ-10-D-1-G-T | Abracon晶振 | ABM3B | MHz Crystal | 8MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-D2Y-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-B4U-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-13.824MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 13.824MHz | 4-SMD, No Lead |
| ABM3B-48.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 48MHz | 4-SMD, No Lead |
| ABM3B-12.288MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 12.288MHz | 4-SMD, No Lead |
| ABM3B-19.200MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 19.2MHz | 4-SMD, No Lead |
| ABM3B-29.4912MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 29.4912MHz | 4-SMD, No Lead |
| ABM3B-15.360MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 15.36MHz | 4-SMD, No Lead |
| ABM3B-19.440MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 19.44MHz | 4-SMD, No Lead |
| ABM3B-28.63636MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 28.63636MHz | 4-SMD, No Lead |
| ABM3B-40.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM3B-12.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 12.8MHz | 4-SMD, No Lead |
| ABM3B-24.576MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM3B-13.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 13MHz | 4-SMD, No Lead |
| ABM3B-44.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 44MHz | 4-SMD, No Lead |
| ABM3B-12.1875MHZ-10-D4-T | Abracon晶振 | ABM3B | MHz Crystal | 12.1875MHz | 4-SMD, No Lead |
| ABM3B-19.680MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 19.68MHz | 4-SMD, No Lead |
| ABM3B-24.576MHZ-20-E-T | Abracon晶振 | ABM3B | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM3B-40.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM3B-13.0625MHZ-10-D4-T | Abracon晶振 | ABM3B | MHz Crystal | 13.0625MHz | 4-SMD, No Lead |
| ABM3B-15.360MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 15.36MHz | 4-SMD, No Lead |
| ABM3B-32.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 32MHz | 4-SMD, No Lead |
| ABM3B-16.384MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 16.384MHz | 4-SMD, No Lead |
| ABM3B-48.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 48MHz | 4-SMD, No Lead |
| ABM3B-12.288MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 12.288MHz | 4-SMD, No Lead |
| ABM3B-19.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 19.8MHz | 4-SMD, No Lead |
| ABM3B-11.0592MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 11.0592MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 12MHz | 4-SMD, No Lead |
| ABM3B-12.288MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 12.288MHz | 4-SMD, No Lead |
| ABM3B-13.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 13MHz | 4-SMD, No Lead |
| ABM3B-13.560MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 13.56MHz | 4-SMD, No Lead |
| ABM3B-14.7456MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 14.7456MHz | 4-SMD, No Lead |
| ABM3B-16.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 16MHz | 4-SMD, No Lead |
| ABM3B-16.384MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 16.384MHz | 4-SMD, No Lead |
| ABM3B-18.432MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 18.432MHz | 4-SMD, No Lead |
| ABM3B-19.200MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 19.2MHz | 4-SMD, No Lead |
| ABM3B-20.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM3B-26.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 26MHz | 4-SMD, No Lead |
| ABM3B-27.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 27MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM3B-28.63636MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 28.63636MHz | 4-SMD, No Lead |
| ABM3B-30.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM3B-36.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 36MHz | 4-SMD, No Lead |
| ABM3B-40.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM3B-48.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 48MHz | 4-SMD, No Lead |
| ABM3B-8.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | MHz Crystal | 8MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-10-B2H-T | Abracon晶振 | ABM3B | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 12MHz | 4-SMD, No Lead |
| ABM3B-12.288MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 12.288MHz | 4-SMD, No Lead |
| ABM3B-13.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 13MHz | 4-SMD, No Lead |
| ABM3B-13.560MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 13.56MHz | 4-SMD, No Lead |
| ABM3B-14.31818MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | MHz Crystal | 14.31818MHz | 4-SMD, No Lead |
