SM8S-9-32.768K-10,Pletronics音叉晶体,32.768KHZ,3215mm

频率：32.768KHZ

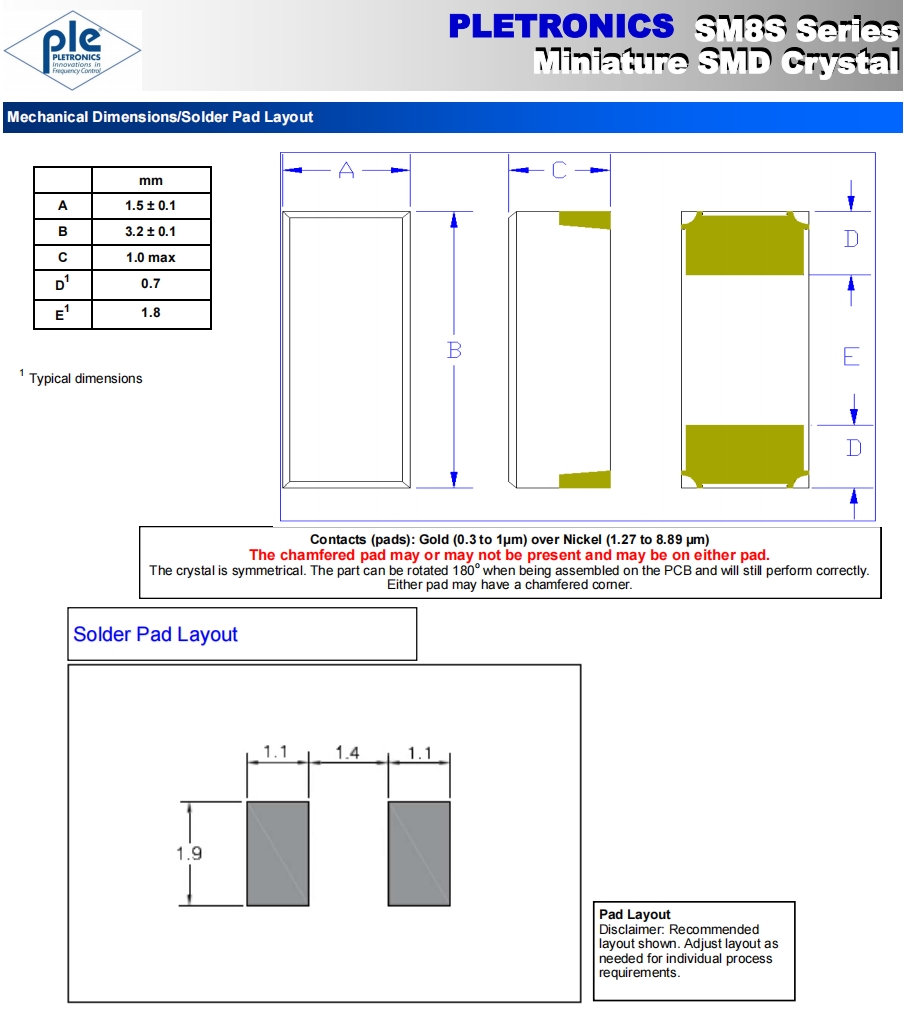

尺寸：3.2x1.5mm

SM8S-9-32.768K-10,Pletronics音叉晶体,32.768KHZ,3215mm,普锐特贴片晶振,美国进口晶振,两脚贴片晶振,音叉晶体,3215mm小封装晶振,32.768KHZ贴片晶振,无源SMD晶体,SMD晶振,轻薄型晶振,尺寸3.2x1.5mm,频率32.768KHz,负载9pF,高性能晶振,高质量晶振,环保晶振,实时晶振,智能手表晶振,MP4收音机晶振,无线设备晶振,

订购热线：0755-27838351

TC-1

SM8S-9-32.768K-10,Pletronics音叉晶体,32.768KHZ,3215mm特点:

Pletronics的SM8S系列是一款微型低姿态表贴水晶。

包装是自动表面安装的理想选择组装和回流实践。

磁带和卷轴包装。

32.768K晶振

TC-2 SM8S-9-32.768K-10,Pletronics音叉晶体,32.768KHZ,3215mm 参数表

Parameter	Min	Typ	Max	Unit	Condition (Consult factory for other options)
Frequency Range	-	32.768	-	kHz
Calibration Frequency Tolerance	-	-	±20	ppm	Standard at 25°C ± 3°C. See page 2 for all options
Frequency Stability	-0.028	-0.034	-0.04	ppm/Δ°C2
Turnover Temperature	20	25	30	°C
Operating Temperature Range	-40	-	+85	°C
Storage Temperature Range	-55	-	+125	°C
Equivalent Series Resistance (ESR)	-	-	70	kΩ	At 25°C
Drive Level	-	-	1	µW
Q Factor	30000	-	-
Shunt Capacitance (C0)	-	1.7	-	pF	Pad to Pad Capacitance
Motional Capacitance (C1)	-	2.9	-	fF
Insulation Resistance	500	-	-	MΩ	@100VDC
Aging at 25°C ± 3°C	-	-	°3	ppm	for the first year at +25°C ± 3°C
