R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体

频率：40MHZ

尺寸：1.2x1.0mm

R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体，尺寸1.2x1.0mm，频率40MHZ，欧美进口晶振，Raltron石英晶体，轻薄型晶振，无铅环保晶振，1210mm小尺寸晶振，石英振动子，无源石英晶体，无源晶振，石英晶体谐振器，四脚贴片晶振，贴片石英晶振，高性能晶振，高品质晶振，高可靠晶振，低损耗晶振，低功耗晶振，小型设备晶振，无源设备晶振，便携式设备晶振，摄像头晶振，测试设备晶振，仪器设备晶振，移动设备晶振，电信设备晶振，具有高性能高可靠性能的特点。石英晶体产品可满足广大应用的需求，比较适合用于小型设备，无源设备，便携式设备，摄像头，测试设备，仪器设备，移动设备，电信设备等应用。R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体.

订购热线：0755-27838351

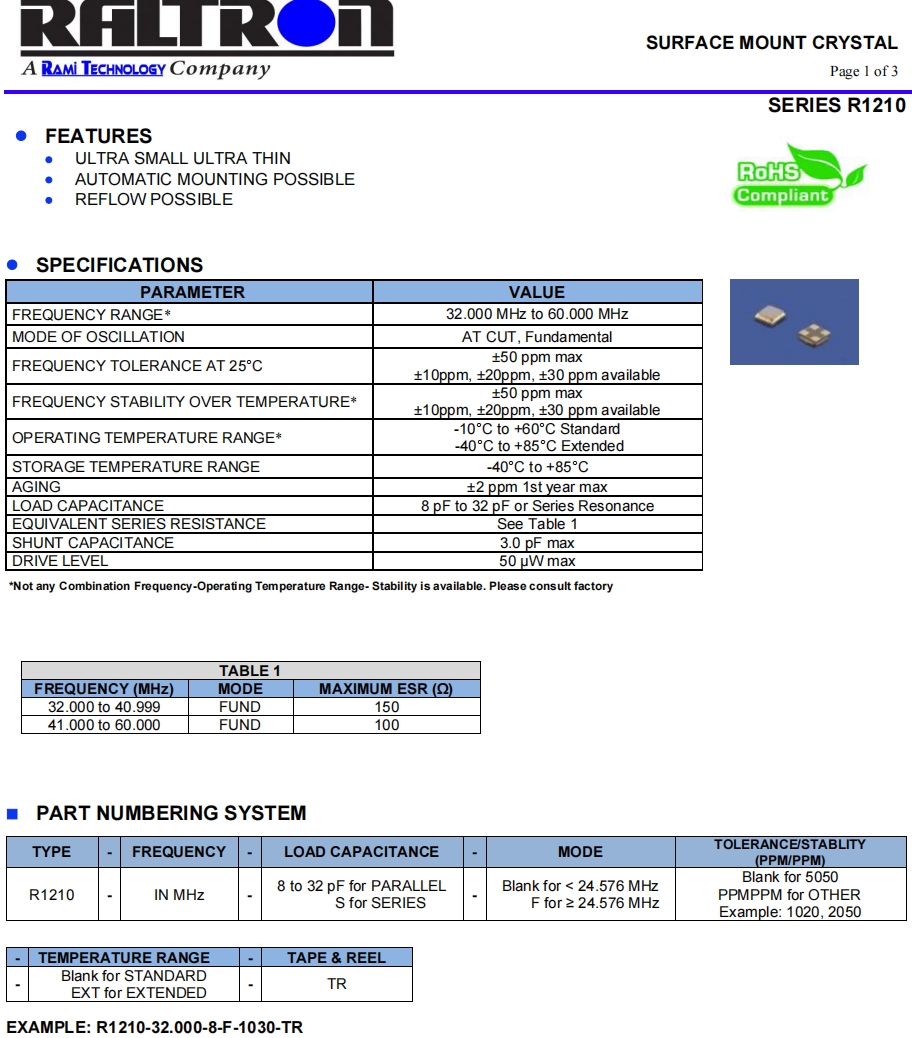

R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体 参数表

PARAMETER

VALUE

FREQUENCY RANGE*

40.000 MHz

MODE OF OSCILLATION

AT CUT, Fundamental

FREQUENCY TOLERANCE AT 25°C

±50 ppm max
±10ppm, ±20ppm, ±30 ppm available

FREQUENCY STABILITY OVER TEMPERATURE*

±50 ppm max
±10ppm, ±20ppm, ±30 ppm available

OPERATING TEMPERATURE RANGE*

-10°C to +60°C Standard
-40°C to +85°C Extended

STORAGE TEMPERATURE RANGE

-40°C to +85°C

AGING

±2 ppm 1st year max

LOAD CAPACITANCE

8 pF to 32 pF or Series Resonance

EQUIVALENT SERIES RESISTANCE

See Table 1

SHUNT CAPACITANCE

3.0 pF max

DRIVE LEVEL

50 µW max

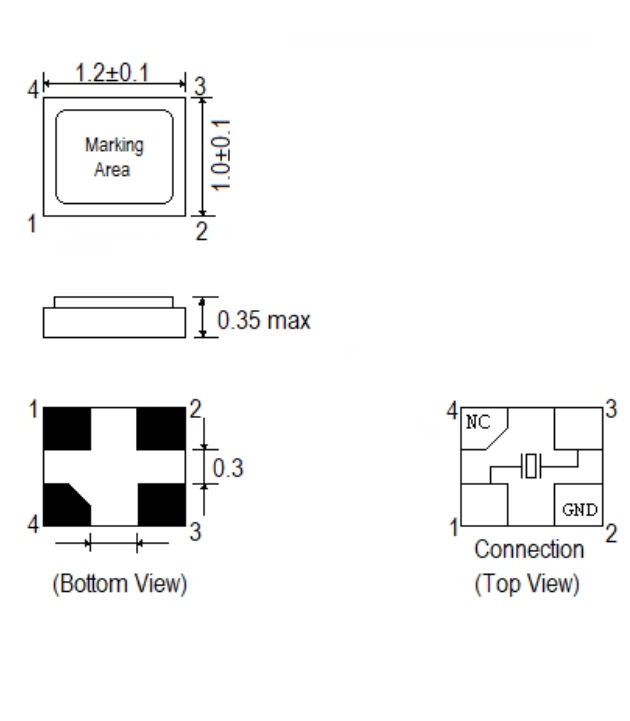

R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体 尺寸图

R1210-40.000-8-F-1030-TR,1210mm,48MHZ,拉隆无源晶体

SMD晶体产品特点:

超小型超薄

可自动安装

可能回流
