ILSI低损耗晶体,ILCX07-FF3F16-9.984MHz倒车影像晶振,ILCX07环保无铅晶振

频率:9.984MHz

尺寸:5032mm

ILSI低损耗晶体,ILCX07-FF3F16-9.984MHz倒车影像晶振,ILCX07环保无铅晶振美国ILSI晶振公司,艾尔西晶振ILCX07晶振ILCX07-FF3F16- 9.984 MHz晶振,外观完全使用金属材料封装的产品本身采用全自动石英晶体检测仪以及跌落漏气等苛刻实验产品本身具有高稳定性高可靠性的石英晶体谐振器。5032晶振,智能手机晶振,无线通信晶振卫星晶振ILSI晶振贴片晶振WIFI用晶体,进口晶振,四脚晶振,插件晶振,欧美进口晶振无源晶振.
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

1

ILSI低损耗晶体,ILCX07-FF3F16-9.984MHz倒车影像晶振,ILCX07环保无铅晶振美国ILSI晶振公司,艾尔西晶振ILCX07晶振ILCX07-FF3F16- 9.984 MHz晶振,外观完全使用金属材料封装的产品本身采用全自动石英晶体检测仪以及跌落漏气等苛刻实验产品本身具有高稳定性高可靠性的石英晶体谐振器。6035晶振,智能手机晶振,无线通信晶振卫星晶振ILSI晶振贴片晶振WIFI用晶体,进口晶振,四脚晶振,插件晶振,欧美进口晶振无源晶振.

2

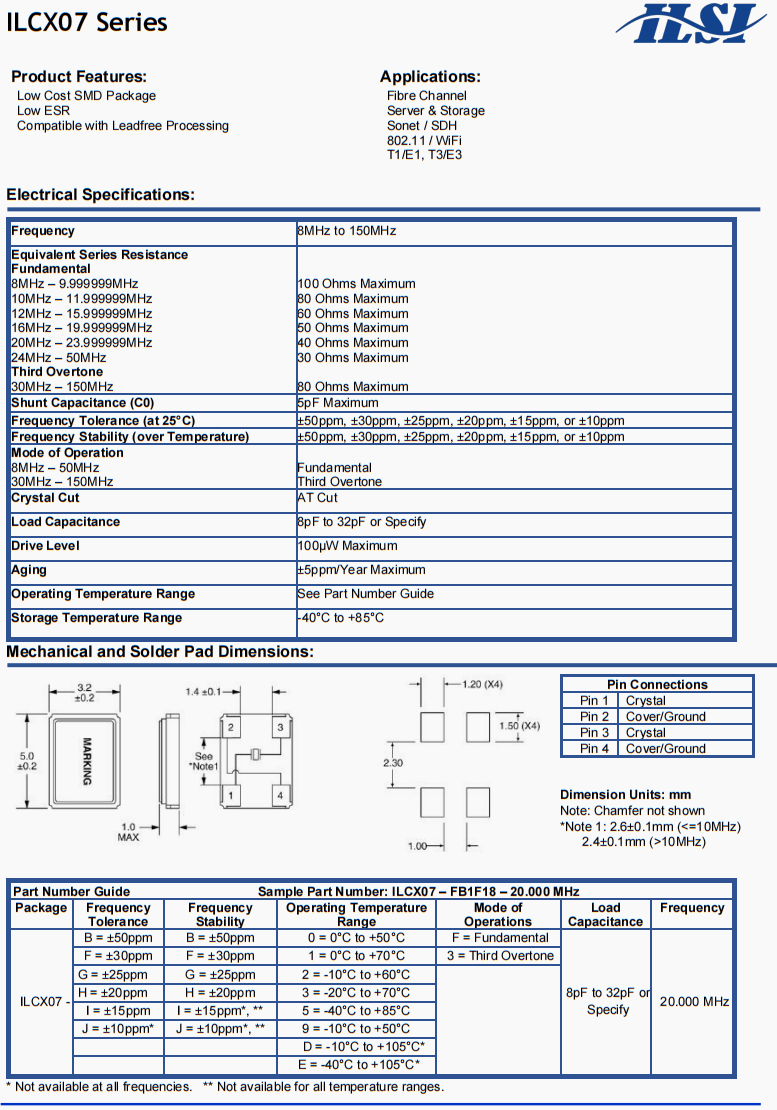

ILSI低损耗晶体,ILCX07-FF3F16-9.984MHz倒车影像晶振,ILCX07环保无铅晶振

频率 6 MHz to 150 MHz
分流电容 7 pF Max.
频率容差 ±30 ppm Standard(see Part Number Guide for options)
频率稳定度 ±50 ppm Standard(see Part Number Guide for options)
晶体切割 AT Cut
负载电容 18 pF Standard(see Part Number Guide for more options)
驱动电平 100 uW Max.
老化 ±5 ppm Max. / Year Standard
工作温度范围 0° C to +70° C Standard(see Part Number Guide for more options)
储存温度范围 -40° C to +85° C Standard
3

ILSI低损耗晶体,ILCX07-FF3F16-9.984MHz倒车影像晶振,ILCX07环保无铅晶振

ILCX07

ILCX07

编码 品牌 型号 工作温度 频率 频率稳定度 频率容差 负载
HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±100ppm ±50ppm 12 pF
HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±100ppm ±50ppm 18 pF
HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±100ppm ±50ppm 18 pF
HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm ±50ppm 10 pF
HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm ±50ppm 20 pF
HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±50ppm ±30ppm 30 pF
HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±50ppm ±30ppm 30 pF
HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±50ppm ±30ppm 10 pF
HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±50ppm ±30ppm 20 pF
HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm ±30ppm 10 pF
HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 18 pF
IL3X-HX5F12.5- 32.768 KHz ILSI IL3X -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F12.5- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F6- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
IL3X2-HX5F7- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
IL3X2-HX5F9- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
ILCX04-FB1F18- 27.000 MHz ILSI ILCX04 0°C ~ 70°C 27 MHz ±50ppm ±30ppm 18 pF
ILCX04-FB1F18- 28.224 MHz ILSI ILCX04 0°C ~ 70°C 28.224 MHz ±50ppm ±30ppm 18 pF
ILCX04-FB3F18- 7.3728 MHz ILSI ILCX04 -20°C ~ 70°C 7.3728 MHz ±50ppm ±30ppm 18 pF
ILCX04-FB5F20- 22.1184 MHz ILSI ILCX04 -40°C ~ 85°C 22.1184 MHz ±50ppm ±30ppm 20 pF
ILCX04-FB5F20- 25.000 MHz ILSI ILCX04 -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 20 pF
ILCX04-FB5F20- 6.000 MHz ILSI ILCX04 -40°C ~ 85°C 6 MHz ±50ppm ±30ppm 20 pF
ILCX04-FF1F20- 8.000 MHz ILSI ILCX04 0°C ~ 70°C 8 MHz ±30ppm ±30ppm 20 pF
ILCX04-JH5F18- 8.000 MHz ILSI ILCX04 -40°C ~ 85°C 8 MHz ±20ppm ±10ppm 18 pF
ILCX07-BB3F12- 16.000 MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm ±50ppm 12 pF
ILCX07-FB3F13-16.000MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm ±30ppm 13 pF
ILCX07-FB5F12- 20.000 MHz ILSI ILCX07 -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 12 pF
ILCX07-FF1F20- 25.000 MHz ILSI ILCX07 0°C ~ 70°C 25 MHz ±30ppm ±30ppm 20 pF
ILCX07-FF3F16- 9.984 MHz ILSI ILCX07 -20°C ~ 70°C 9.984 MHz ±30ppm ±30ppm 16 pF
ILCX07-FF3F16- 10.78125 MHz ILSI ILCX07 -20°C ~ 70°C 10.78125 MHz ±30ppm ±30ppm 16 pF
ILCX07-FF3F16- 13.560 MHz ILSI ILCX07 -20°C ~ 70°C 13.56 MHz ±30ppm ±30ppm 16 pF
ILCX07-FF5F12.5-8.000MHz ILSI ILCX07 -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 12 pF
ILCX07-FF5F18- 24.000 MHz ILSI ILCX07 -40°C ~ 85°C 24 MHz ±30ppm ±30ppm 18 pF
ILCX07-FF5F18- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 18 pF
ILCX07-FF5F20- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 20 pF
ILCX07-HB3F18- 20.000 MHz ILSI ILCX07 -20°C ~ 70°C 20 MHz ±50ppm ±20ppm 18 pF
ILCX07-HB3F18- 27.000 MHz ILSI ILCX07 -20°C ~ 70°C 27 MHz ±50ppm ±20ppm 18 pF
ILCX07-JJ2F10- 8.000 MHz ILSI ILCX07 -10°C ~ 60°C 8 MHz ±10ppm ±10ppm 10 pF
ILCX07-JJ3F10- 12.000 MHz ILSI ILCX07 -20°C ~ 70°C 12 MHz ±10ppm ±10ppm 10 pF
ILCX07A-FB1F12- 18.432 MHz ILSI ILCX07A 0°C ~ 70°C 18.432 MHz ±50ppm ±30ppm 12 pF
ILCX07A-FB3F18- 12.000 MHz ILSI ILCX07A -20°C ~ 70°C 12 MHz ±50ppm ±30ppm 18 pF
ILCX07B-FB1F18- 14.7456 MHz ILSI ILCX07B 0°C ~ 70°C 14.7456 MHz ±50ppm ±30ppm 18 pF
ILCX07B-FB1F18-27.120MHz ILSI ILCX07B 0°C ~ 70°C 27.12 MHz ±50ppm ±30ppm 18 pF
ILCX07B-FB5F20- 29.4912 MHz ILSI ILCX07B -40°C ~ 85°C 29.4912 MHz ±50ppm ±30ppm 20 pF
ILCX08-HH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm ±20ppm 18 pF
ILCX08-JG5F18- 24.000 MHz ILSI ILCX08 -40°C ~ 85°C 24 MHz ±25ppm ±10ppm 18 pF
ILCX08-JH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm ±10ppm 18 pF
ILCX08-JH5F18- 16.000 MHz ILSI ILCX08 -40°C ~ 85°C 16 MHz ±20ppm ±10ppm 18 pF
ILCX13-BB5F10- 12.000000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 10 pF
ILCX13-BB5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 10 pF
ILCX13-BB5F10- 49.152 MHz ILSI ILCX13 -40°C ~ 85°C 49.152 MHz ±50ppm ±50ppm 10 pF
ILCX13-BH3F18- 12.000 MHZ ILSI ILCX13 -20°C ~ 70°C 12 MHz ±20ppm ±50ppm 18 pF
ILCX13-FB5F15- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 15 pF
ILCX13-FB5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 18 pF
ILCX13-FB5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±50ppm ±30ppm 18 pF
ILCX13-FB5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±50ppm ±30ppm 18 pF
ILCX13-FB5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 18 pF
ILCX13-FF3F10- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±30ppm ±30ppm 10 pF
