8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振

频率：8~30MHZ

尺寸：8.0x3.8mm

8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振,英国高利奇晶振,英国进口晶振,无源晶振,陶瓷面晶振,两脚无源晶振,贴片晶振,8038晶体谐振器,尺寸8.0x3.8mm,频率范围8~30MHZ,高抗冲击晶振,低损耗晶振,低功耗晶振,绿色环保晶振,高品质晶振,高性能晶振,安防晶振,军事应用晶振,仪器设备晶振,数码电子晶振,便携式设备晶振.

订购热线：0755-27838351

8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振特点:

晶振晶体基本模式

高抗冲击和振动性

军用温度范围-55+125℃选项

低功耗

8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振 参数表

SPECIFICATIONS
Frequency range 8.0 ~ 30.0MHz

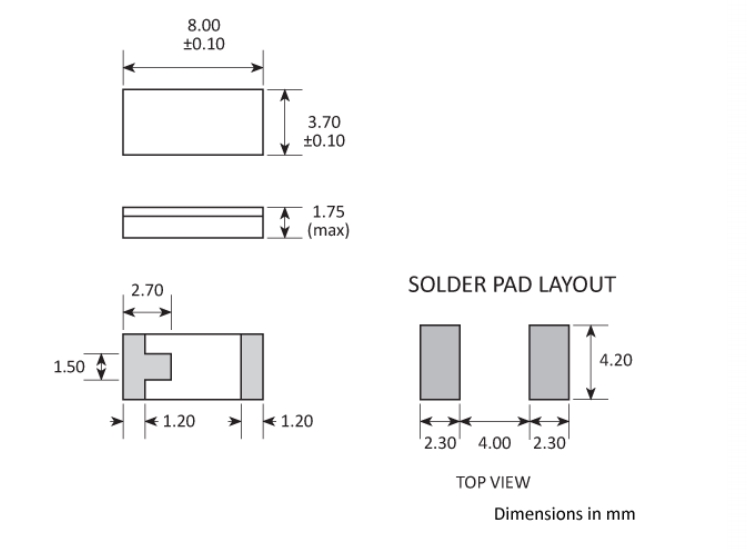

Dimensions 8.0 x 3.7 x 1.75mm
Storage temperature -55 to +125 °C range
Static capacitance 2.0pF typ @ 8.0MHz (C0) 2.8pF typ @ 16.384MHz 4.0pF typ @ 24.0MHz
Motional capacitance 4.0fF typ @ 8.0MHz (C1) 8.0fF typ @ 16.384MHz 11.0fF typ @ 24.0MHz
Equivalent series 60Ω typ, 100Ω max @ 8.0MHz resistance 35Ω typ, 60Ω max @ 16.384MHz 30Ω typ, 40Ω max @ 24.0MHz
Ageing ±3ppm max first year
Drive level 100µW typ, 500µW max
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations Sn/Ag/Cu plated pads
Soldering condition Reflow, 260 °C, 20 sec max
