12.85053石英晶振,KX-13T有源晶振,丹麦格耶Geyer晶振振荡器

频率：12MHZ

尺寸：7.0*5.0mm

12.85053石英晶振,KX-13T有源晶振,丹麦格耶Geyer晶振振荡器，当智能设备精准运行,当通信网络无缝衔接,鲜有人留意支撑这一切的核心元件——晶振.丹麦格耶Geyer的KX-13T晶振,以7.0×5.0×1.3毫米的方寸之躯,承载着12M频率、12PF负载电容等精密参数,恰是“微小处藏大乾坤”的生动诠释.

订购热线：0755-27838351

12.85053石英晶振,KX-13T有源晶振,丹麦格耶Geyer晶振振荡器，当智能设备精准运行,当通信网络无缝衔接,鲜有人留意支撑这一切的核心元件——晶振.丹麦格耶晶振Geyer的KX-13T晶振,以7.0×5.0×1.3毫米的方寸之躯,承载着12M频率、12PF负载电容等精密参数,恰是“微小处藏大乾坤”的生动诠释.
晶振之重,在于其为科技设备提供“心跳节律”.KX-13T的12兆赫兹固定频率,如同精准的时钟,确保电子设备指令传输有序.手机通话的清晰流畅、汽车电子的稳定运行,皆离不开其±30ppm的容差控制.在工业自动化领域,哪怕0.1ppm的频率偏差,都可能导致生产线瘫痪,欧美进口晶振而KX-13T在-40℃至+85℃的宽温环境下仍能保持±50ppm的稳定性,彰显了“细节决定成败”的真理,电子产品适合用于6G物联网，平板电脑，仪器仪表，智能手机，蓝牙音响，智能家居，移动通信，测试与测量等领域.

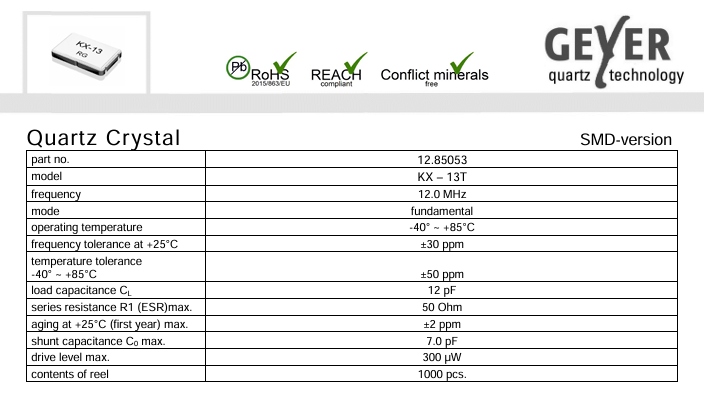

12.85053石英晶振,KX-13T有源晶振,丹麦格耶Geyer晶振振荡器 参数表

part no.	12.85053
model	KX-13T
frequency range	12.0 MHz
mode	fundamental
operating temperature	available -40° ~ +85°C
frequency tolerance at +25°C	standard ±30 ppm
temperature tolerance -40° ~ +85°C	standard ±30 ppm; available ±10 ~ ±50 ppm
load capacitance CL	standard 10 pF 石英晶振
series resistance R1 (ESR) max.	12.0 ~ 15.99 MHz 150 Ohm 16.0 ~ 20.0 MHz 100 Ohm 20.1 ~ 29.99 MHz 80 Ohm 30.0 ~ 80.0 MHz 50 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	7.0 pF
drive level max.	300 µW
contents of reel	1000 pcs.

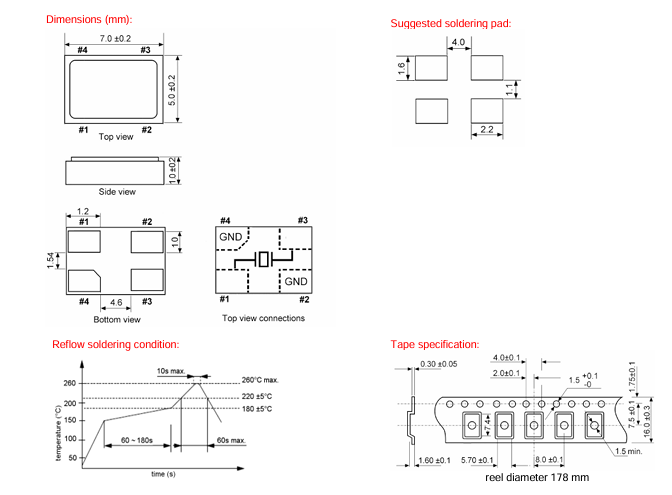

12.85053石英晶振,KX-13T有源晶振,丹麦格耶Geyer晶振振荡器 尺寸图

产品特性：

大尺寸SMD晶体

成本很低

无铅环保

更多相关Geyer格耶晶振型号

晶振编码	制造商	晶振参数描述	型号	频率容差	工作温度	脚位	尺寸	GEYER晶振制造商
12.6009	GEYER	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	±20ppm	-40°C ~ 85°C	4	3225	Geyer
12.86511	GEYER	Crystal 18.4320Mhz 10pF SMD	KX-6	±30ppm	-20°C ~ 70°C	4	2520	Geyer
12.8655	GEYER	Crystal 16.0Mhz 10pF SMD	KX-6E	±30ppm	-40°C ~ 105°C	4	2520	Geyer
12.85521	GEYER	CYSTAL 26.0MHZ 10PF SMD	KX-5T	±10ppm	-40°C ~ 85°C	4	2016	Geyer
12.60208	GEYER	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	±20ppm	-40°C ~ 85°C	4	3225	Geyer
12.86574	GEYER	Crystal 27.0Mhz 8pF SMD	KX-6F	±30ppm	-40°C ~ 125°C	4	2520	Geyer
12.60233	GEYER	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	±20ppm	-40°C ~ 85°C	4	3225	Geyer
12.87081	GEYER	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.87106	GEYER	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	±20ppm	-40°C ~ 85°C	2	4.95*1.82mm	Geyer
12.87114	GEYER	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	±20ppm	-40°C ~ 85°C	4	8038	Geyer
12.87143	GEYER	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.87147	GEYER	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	±10ppm	-40°C ~ 85°C	2	3215	Geyer
12.87148	GEYER	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.87149	GEYER	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.8715	GEYER	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.87151	GEYER	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	±30ppm	-40°C ~ 85°C	2	3215	Geyer
12.87154	GEYER	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer
12.86544	GEYER	Crystal 16.0Mhz 10pF SMD	KX-7E	±30ppm	-40°C ~ 105°C	4	2520	Geyer
12.85547	GEYER	CYSTAL 26.0MHZ 8PF SMD	KX-5T	±10ppm	-40°C ~ 85°C	4	2016	Geyer
12.86531	GEYER	Cystal 16.0Mhz 10pF SMD	KX-6T	±30ppm	-40°C ~ 85°C	4	2520	Geyer
12.88664	GEYER	Crystal 14.3181800Mhz 12pF SMD	KX-7	±30ppm	-20°C ~ 70°C	4	3225	Geyer
12.89103	GEYER	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	±30ppm	-40°C ~ 105°C	4	5032	Geyer
12.887	GEYER	Crystal 30.0Mhz 12pF SMD	KX-7	±30ppm	-20°C ~ 70°C	4	3225	Geyer
12.85515	GEYER	CYSTAL 27.0MHZ 8PF SMD	KX-5	±30ppm	-20°C ~ 70°C	4	2016	Geyer
12.89131	GEYER	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	±30ppm	-40°C ~ 85°C	4	5032	Geyer
12.86512	GEYER	Cystal 20.0Mhz 10pF SMD	KX-6	±30ppm	-20°C ~ 70°C	4	2520	Geyer
12.84801	GEYER	Crystal 26.0MHz 8pF SMD	KX-4	±30ppm	-20°C ~ 70°C	4	1612	Geyer
12.89126	GEYER	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	±30ppm	-40°C ~ 105°C	4	5032	Geyer
12.86526	GEYER	Cystal 26.0Mhz 10pF SMD	KX-6T	±10ppm	-40°C ~ 85°C	4	2520	Geyer
