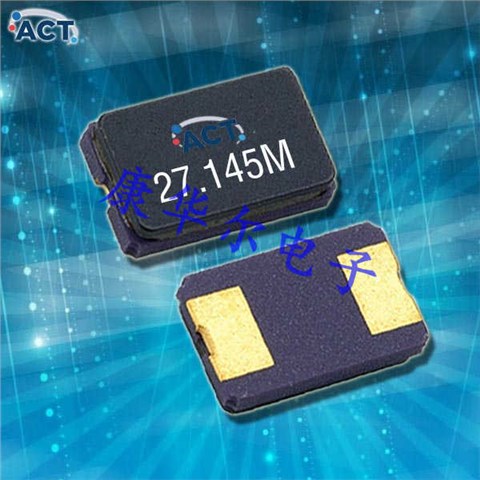

艾西迪5032晶振,533SMX‐2,RA1200GKLGOFL‐PF,12MHZ

产品简介

艾西迪5032晶振,533SMX‐2,RA1200GKLGOFL‐PF,12MHZ,ACT无源晶振,英国进口晶振,进口小体积晶振,两脚贴片晶振,陶瓷晶振,12MHZ无源晶振,5032mm贴片晶振,无源晶振,尺寸5.0x3.2mm,频率12MHZ,无铅环保晶振,高质量晶振,高性能晶振,低老化晶振,便携式设备晶振,小型设备晶振,仪器设备晶振,蜂窝电话晶振,网络设备晶振.

产品详情

艾西迪5032晶振,533SMX‐2,RA1200GKLGOFL‐PF,12MHZ特点:

玻璃密封水晶晶振晶体

符合RoHS标准且无铅

低老化低损耗

艾西迪5032晶振,533SMX‐2,RA1200GKLGOFL‐PF,12MHZ参数表

Parameters Specification Remarks

Frequency range F_nom 12.0MHz (Fundamental)
48.0MHz ~ 80.0MHz (3rd Overtone)

Frequency tolerance F_tol ±10.0ppm ~ ±50.0ppm

Frequency stability over operating temperature range F_stb ±10.0ppm ~ ±50.0ppm Table 2

Operating temperature range T_use ‐ 20°C ~ +70°C, ‐ 30°C~ +85°C, ‐40°C ~ +85°C Table 2

Storage temperature T_stg ‐55°C ~ +125°C

Load capacitance CL 8.0pF ~ 30.0pF, series

Equivalent series resistance ESR Table 1

Shunt capacitance C0 7.0pF max

Drive level DL 300μW max 100μW typical

Frequency aging F_age ±5.0ppm at 25°C, 1st Year

Moisture sensitivity level MSL 1 (unlimited)

Electrostatic discharge ESD Not applicable

Insulation resistance IR 500MΩ min At 100V DC

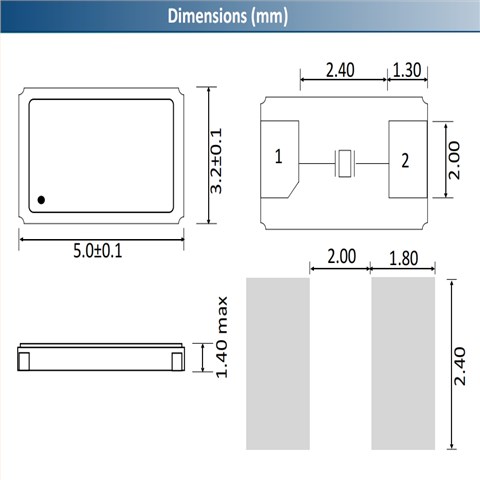

艾西迪5032晶振,533SMX‐2,RA1200GKLGOFL‐PF,12MHZ尺寸图

上一页余下全文

1/5
