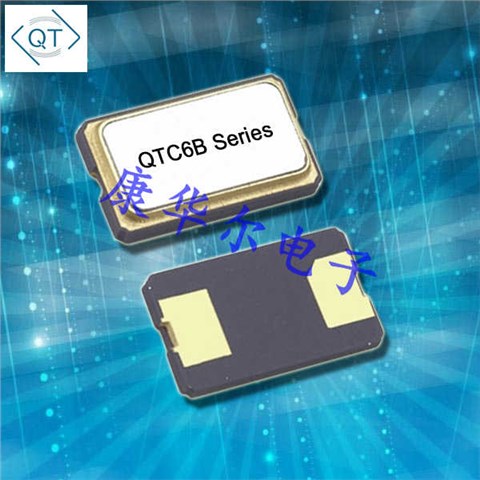

QTC6B40.0000FCT2I30R,德国夸克水晶振动子,6035mm,40MHZ,Quarztechnik无源晶振,德国进口晶体,无源贴片晶振,6035mm小体积晶振,两脚贴片晶振,40MHZ晶体谐振器,SMD晶体,轻薄型晶振,尺寸6.0x3.5mm,频率40MHZ,负载16pF,低损耗晶振,低功耗晶振,高品质晶振,通信设备晶振,测试设备晶振,无线网络晶振,汽车应用晶振.
QTC6B40.0000FCT2I30R,德国夸克水晶振动子,6035mm,40MHZ特点:
晶振晶体高度低，适用于薄型设备
陶瓷包装和金属盖确保高可靠性
具有紧密的公差和稳定性

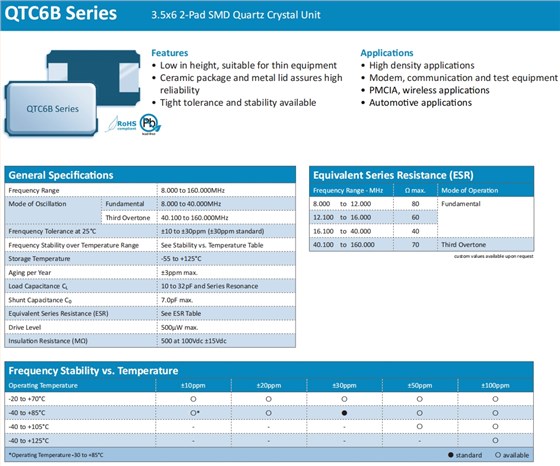

QTC6B40.0000FCT2I30R,德国夸克水晶振动子,6035mm,40MHZ 参数表
| General Specifications | |||||||||||||||||
| Frequency Range | 40.000MHz | ||||||||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 40.000MHz | |||||||||||||||
| Third Overtone | 40.100 to 160.000MHz | ||||||||||||||||
| Frenquency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||
| Drive Level | 500μW max. | ||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||

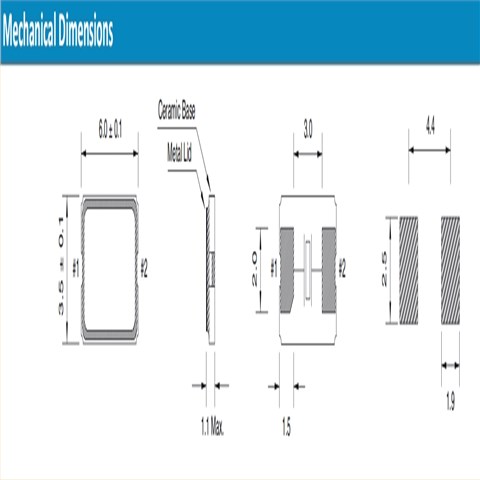

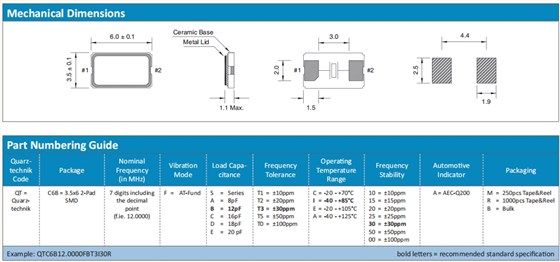

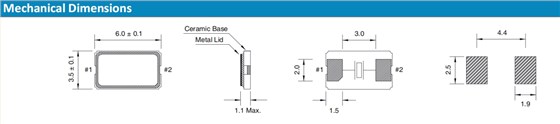

QTC6B40.0000FCT2I30R,德国夸克水晶振动子,6035mm,40MHZ尺寸图
