CS1610-A-32.768K-9-TR,Transko时钟晶振,CS1610,32.768KHZ,特兰斯科无源晶振,欧美进口晶振,1610mm贴片晶体,32.768K晶振,音叉晶体,无源贴片晶振,CS1610晶振,两脚贴片晶振,尺寸1.6x1.0mm,频率32.768KHZ,负载9pF,低老化晶振,低损耗晶振,无铅晶振,高品质晶振,低功耗晶振,实时时钟晶振,手表专用晶振,蓝牙耳机晶振.
CS1610-A-32.768K-9-TR,Transko时钟晶振,CS1610,32.768KHZ特点:
优异的老化特性
超薄厚度0.5MM晶振晶体
可回流，符合RoHS标准且无铅

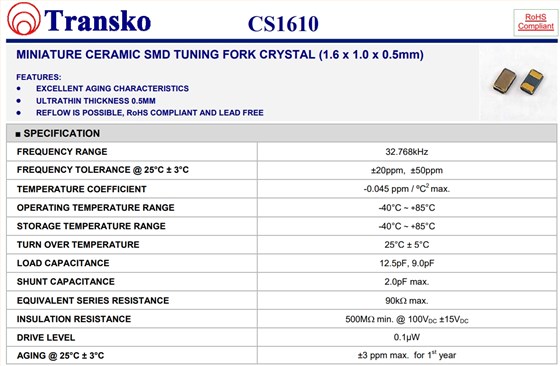

CS1610-A-32.768K-9-TR,Transko时钟晶振,CS1610,32.768KHZ 参数表
| . SPECIFICATION | ||||||||||||||||||||||||||||
| FREQUENCY RANGE | 32.768kHz | |||||||||||||||||||||||||||
| FREQUENCY TOLERANCE @ 25°C ± 3°C | ±20ppm,±50ppm | |||||||||||||||||||||||||||
| TEMPERATURE COEFFICIENT | -0.045 ppm / ºC2max. | |||||||||||||||||||||||||||
| OPERATING TEMPERATURE RANGE | -40°C~ +85°C | |||||||||||||||||||||||||||
| STORAGE TEMPERATURE RANGE | -40°C~ +85°C | |||||||||||||||||||||||||||
| TURN OVER TEMPERATURE | 25°C ± 5°C | |||||||||||||||||||||||||||
| LOAD CAPACITANCE | 12.5pF, 9.0pF | |||||||||||||||||||||||||||
| SHUNT CAPACITANCE | 2.0pF max. | |||||||||||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE | 90kΩ max. | |||||||||||||||||||||||||||
| INSULATION RESISTANCE | 500MΩ min. @ 100VDC±15VDC | |||||||||||||||||||||||||||
| DRIVE LEVEL | 0.1µW | |||||||||||||||||||||||||||
| AGING @ 25°C ± 3°C | ±3 ppm max.for 1styear | |||||||||||||||||||||||||||
CS1610-A-32.768K-9-TR,Transko时钟晶振,CS1610,32.768KHZ尺寸图
