XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振

XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振

产品简介

XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振,尺寸3.2x2.5mm,频率32MHZ,电压1.8V,输出逻辑LVDS,LVDS输出晶振,LVDS差分晶体振荡器,差分贴片晶振,差分有源晶振,低电压差分晶振,低损耗差分振荡器,3225mm差分晶振,低抖动差分晶振,低功耗差分振荡器,低相位有源晶振,高品质差分晶振,高性能差分振荡器,OSC差分晶振,光模块差分晶振,6G移动通信晶振,物联网专用差分晶振,无线设备差分晶振。

XP设备是基于超低相位噪声石英的PLL支持大范围频率和输出的振荡器接口类型。这些设备设计为在三不同的电源,有三种封装尺寸具有几种引脚输出配置,以及三种可操作温度范围。XP差分晶振可以编程以生成输出频率从15MHz到2100MHz,分辨率低至1Hz精度。该系列设备的配置功能允许快速交付样品和大批量生产订单。XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振.


产品详情

1

XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振,尺寸3.2x2.5mm,频率32MHZ,电压1.8V,输出逻辑LVDS,LVDS输出晶振,LVDS差分晶体振荡器,差分贴片晶振,差分有源晶振,低电压差分晶振,低损耗差分振荡器,3225mm差分晶振,低抖动差分晶振,低功耗差分振荡器,低相位有源晶振,高品质差分晶振,高性能差分振荡器,OSC差分晶振,光模块差分晶振,6G移动通信晶振,物联网专用差分晶振,无线设备差分晶振。

XP设备是基于超低相位噪声石英的PLL支持大范围频率和输出的振荡器接口类型。这些设备设计为在三不同的电源,有三种封装尺寸具有几种引脚输出配置,以及三种可操作温度范围。XP差分晶振可以编程以生成输出频率从15MHz到2100MHz,分辨率低至1Hz精度。该系列设备的配置功能允许快速交付样品和大批量生产订单。XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振.2

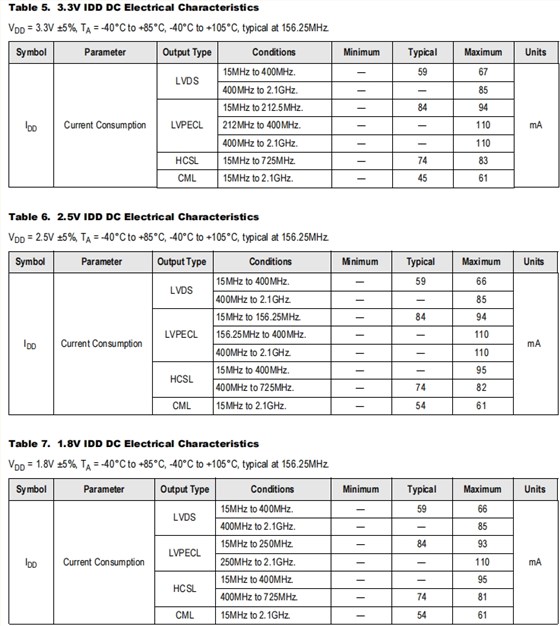

XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振参数表

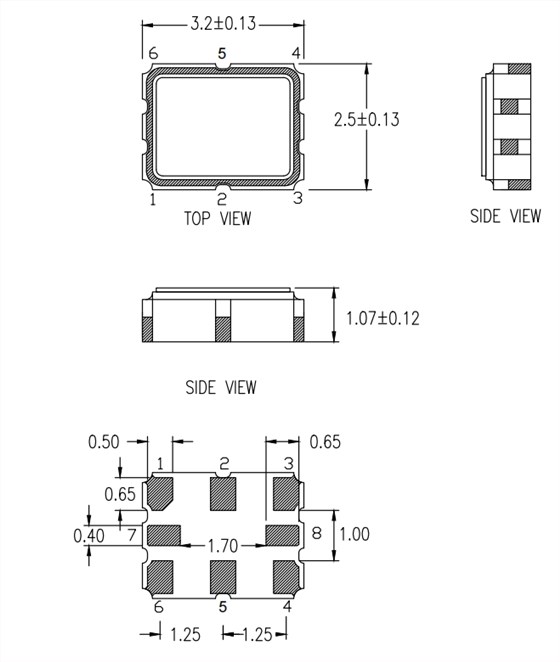

XP cans 3XP有源晶振,XPL316032.000000I,Renesas振荡器,6G移动通信晶振尺寸XP 3225

3225有源贴片晶振产品特性:

输出类型:LVDS、LVPECL、CML

频率范围:15MHz至2100MHz

输出类型:HCSL

频率范围:15MHz至725MHz

电源电压选项:1.8V、2.5V或3.3V

相位抖动(12kHz至20MHz):典型值为120fs

程序包选项:

7.0×5.0×1.7毫米

5.0×3.2×1.17毫米

3.2×2.5×1.07毫米

工作温度和频率稳定性:

-40°C至+85°C,±25ppm

-40°C至+105°C,±50ppm

XP 1XP 2

更多相关Renesas晶振型号

Mfr Part # 晶振厂家 Description Series Frequency Output Voltage - Supply
XFP236625.000000I Renesas晶振 XTAL OSC XO 625.0000MHZ LVPECL XFP 625 MHz LVPECL 3.3V
XFP236312.500000I Renesas晶振 XTAL OSC XO 312.5000MHZ LVPECL XFP 312.5 MHz LVPECL 3.3V
XFP236156.250000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XFP 156.25 MHz LVPECL 3.3V
XPP336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz LVPECL 3.3V
XPL536800.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 800 MHz LVDS 3.3V
XPP736161.132812I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 161.132812 MHz LVPECL 3.3V
XPL526200.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 200 MHz LVDS 2.5V
XPP736125.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 125 MHz LVPECL 3.3V
XPC736174.703000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 174.703 MHz CML 3.3V
XPL316133.333333I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 133.333333 MHz LVDS 1.8V
XPC316800.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 800 MHz CML 1.8V
XPC336212.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 212.5 MHz CML 3.3V
XPL336016.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 16 MHz LVDS 3.3V
XPP316156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz LVPECL 1.8V
XPL536C10.937500I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 1.2109375 GHz LVDS 3.3V
XPP736212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 212.5 MHz LVPECL 3.3V
XPL736156.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.25 MHz LVDS 3.3V
XPL536148.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 148.5 MHz LVDS 3.3V
XPP736156.253906I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.253906 MHz LVPECL 3.3V
XPC536020.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 20 MHz CML 3.3V
XPC736174.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 174 MHz CML 3.3V
XPP736175.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 175 MHz LVPECL 3.3V
XPL736148.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 148.5 MHz LVDS 3.3V
XPL336148.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 148.5 MHz LVDS 3.3V
XPL336156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz LVDS 3.3V
XPL336125.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 125 MHz LVDS 3.3V
XPL316050.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 50 MHz LVDS 1.8V
XPP736100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 100 MHz LVPECL 3.3V
XPC736625.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 625 MHz CML 3.3V
XPP736106.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 106.25 MHz LVPECL 3.3V
XPL316032.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 32 MHz LVDS 1.8V
XPL516156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz LVDS 1.8V
XPP735156.250005I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.250005 MHz LVPECL 3.3V
XPP736122.880000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 122.88 MHz LVPECL 3.3V
XPN336078.125000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 78.125 MHz HCSL 3.3V
XPP736124.992000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 124.992 MHz LVPECL 3.3V
XPL336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz LVDS 3.3V
XPL736125.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 125 MHz LVDS 3.3V
XPC316156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz CML 1.8V
XPL536148.163548I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 148.163548 MHz LVDS 3.3V
XPL736300.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 300 MHz LVDS 3.3V
XPL316156.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156 MHz LVDS 1.8V
XPL326200.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 200 MHz LVDS 2.5V
XPP736200.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 200 MHz LVPECL 3.3V
XPL526312.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 312.5 MHz LVDS 2.5V
XPL336040.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 40 MHz LVDS 3.3V
XPP526156.250000I 瑞萨晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz LVPECL 2.5V
XPN326312.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 312.5 MHz HCSL 2.5V
XPC736100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 100 MHz CML 3.3V
XPN336025.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 25 MHz HCSL 3.3V
XPM736625.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 625 MHz - 3.3V
XPN336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz HCSL 3.3V
XPL736800.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 800 MHz LVDS 3.3V
XPP726212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 212.5 MHz LVPECL 2.5V
XPL536070.656000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 70.656 MHz LVDS 3.3V
XPP736250.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 250 MHz LVPECL 3.3V
XPP726312.510900I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 312.5109 MHz LVPECL 2.5V
XPP736915.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 915 MHz LVPECL 3.3V
XPP336830.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 830 MHz LVPECL 3.3V
