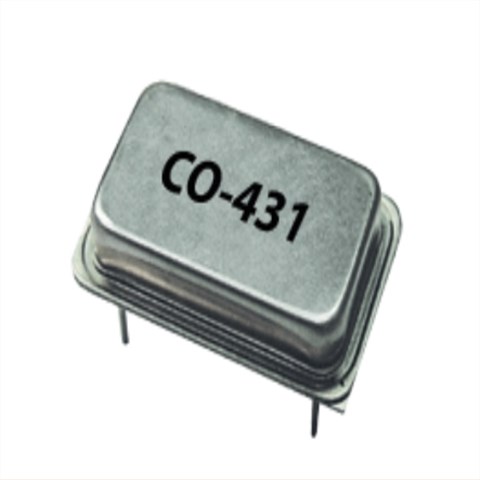

CO-4312B-7XR-12MHZ,维管晶振,长方型钟振,6G模块晶振

产品简介

CO-4312B-7XR-12MHZ,维管晶振,长方型钟振,6G模块晶振，尺寸为20*20mm,频率为12MHZ，Vectron维管晶振，进口有源晶体振荡器，Clock Oscillators，时钟振荡器，石英晶体振荡器，OSC振荡器，高品质晶振，低抖动晶振，低相位晶振，低电压晶振，无线模块晶振，平板电脑晶振，物联网晶振，小型设备晶振，仪器仪表晶振，无线网络专用晶振。

有源晶振产品主要应用范围：平板电脑，无线模块，物联网，小型设备，仪器仪表，无线网络等领域。CO-4312B-7XR-12MHZ,维管晶振,长方型钟振,6G模块晶振.

产品详情

有源晶振产品主要应用范围：平板电脑，无线模块，物联网，小型设备，仪器仪表，无线网络等领域。CO-4312B-7XR-12MHZ,维管晶振,长方型钟振,6G模块晶振.CO-4312B-7XR-12MHZ,维管晶振,长方型钟振,6G模块晶振参数表

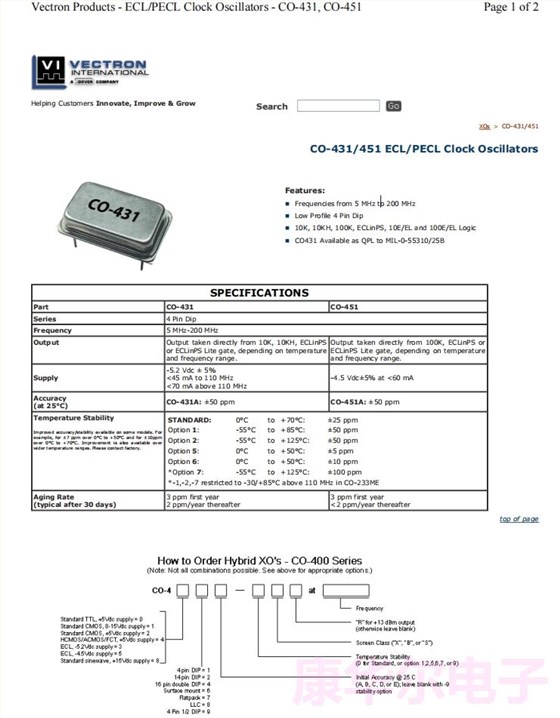

SPECIFICATIONS
Part	CO-431
Series	4 Pin Dip
Frequency	12MHz
Output	Output taken directly from 10K, 10KH, ECLinPS or ECLinPS Lite gate, depending on temperature and frequency range.
Supply	-5.2 Vdc ± 5% <45 mA to 110 MHz <70 mA above 110 MHz
Accuracy (at 25°C)	CO-431A: ±50 ppm
Temperature Stability Improved accuracy/stability available on some models. For example, for ±7 ppm over 0°C to +50°C and for ±10ppm over 0°C to +70°C. Improvement is also available over wider temperature ranges. Please contact factory.	STANDARD: 0°C to +70°C: ±25 ppm Option 1: -55°C to +85°C: ±50 ppm Option 2: -55°C to +125°C: ±50 ppm Option 5: 0°C to +50°C: ±5 ppm Option 6: 0°C to +50°C: ±10 ppm Option 7: -55°C to +125°C: ±100 ppm -1,-2,-7 restricted to -30/+85°C above 110 MHz in CO-233ME
Aging Rate (typical after 30 days)	3 ppm first year 2 ppm/year thereafter
