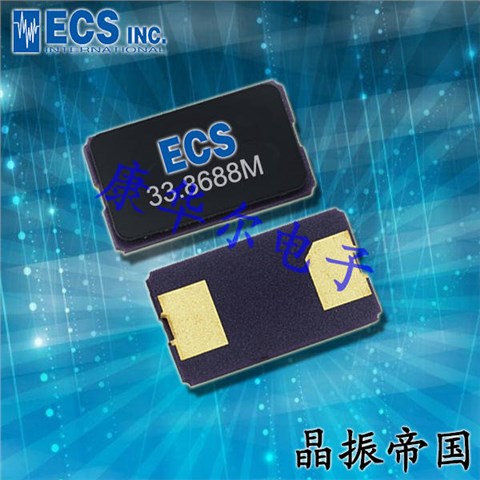

伊西斯晶振 ECS-300-12-23A-TR 6G无线晶振 ECX-64A无源晶体，尺寸6.0x3.5mm，频率30MHZ，ECS无源晶振，欧美进口晶振，进口贴片晶振，两脚贴片晶振，轻薄型晶体，无铅环保晶振，6035mm无源晶振，陶瓷晶振，无源晶振，无源SMD晶振，SMD谐振器，SMD晶振，水晶振动子，高品质晶振，低损耗晶振，6G无线晶振，智能家居晶振，通信应用晶振，仪器设备晶振，智能音响晶振，娱乐设备晶振，蓝牙模块晶振，具有高品质低损耗的特点。
ECX-64A是一款带6 x 3.5mm 2焊盘的小型SMD晶体脚印这种高度为1.1毫米的经济高效包装非常适合人口密集的PCB应用，还可以广泛用于娱乐设备，智能音响，仪器设备，智能家居等领域。伊西斯晶振 ECS-300-12-23A-TR 6G无线晶振 ECX-64A无源晶体.

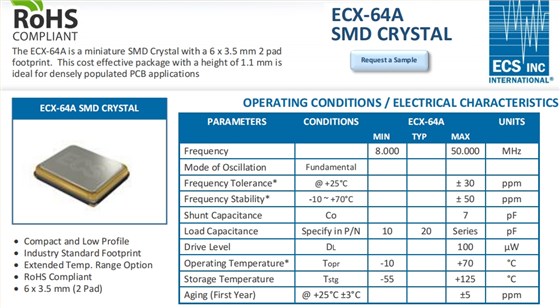

伊西斯晶振 ECS-300-12-23A-TR 6G无线晶振 ECX-64A无源晶体参数表
| PARAMETERS | CONDITIONS | ECX-64A | UNITS | ||||||||||||||
| MIN | TYP | MAX | |||||||||||||||
| Frequency |
|
30 | MHz | ||||||||||||||
| Mode of Oscillation | Fundamental | ||||||||||||||||
| Frequency Tolerance* | @ +25°C | ± 30 | ppm | ||||||||||||||
| Frequency Stability* | -10 ~ +70°C | ± 50 | ppm | ||||||||||||||
| Shunt Capacitance | Co | 7 | pF | ||||||||||||||
| Load Capacitance | Specify in P/N | 10 | 20 | Series | pF | ||||||||||||
| Drive Level | DL | 100 | μW | ||||||||||||||
| Operating Temperature* | Topr | -10 | +70 | °C | |||||||||||||
| Storage Temperature | Tstg | -55 | +125 | °C | |||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | ||||||||||||||

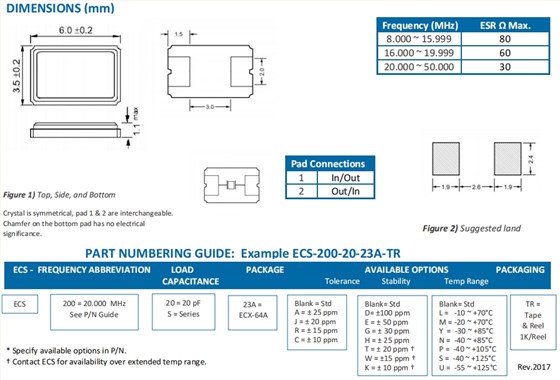

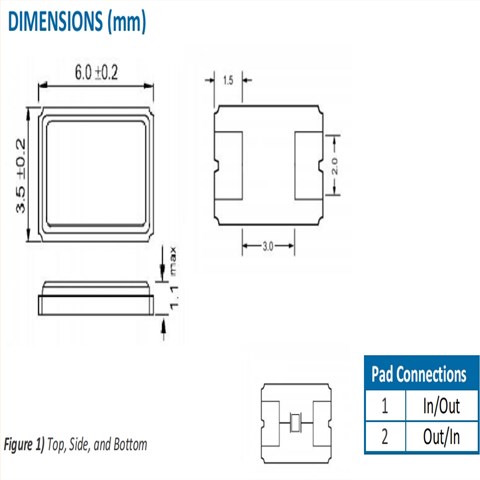

伊西斯晶振 ECS-300-12-23A-TR 6G无线晶振 ECX-64A无源晶体 尺寸图
晶振晶体产品特性：
紧凑和低轮廓
行业标准足迹
扩展温度范围选项
RoHS兼容的
6x3.5mm（2垫）
