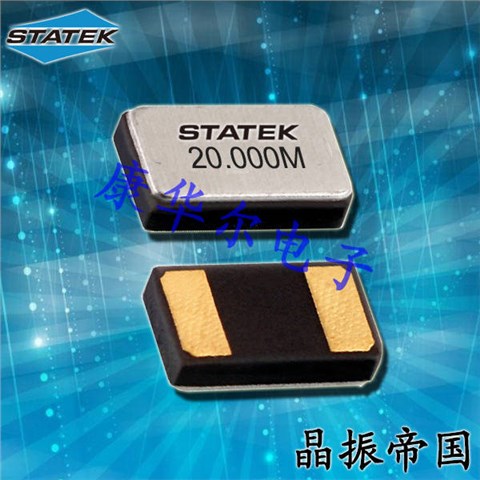

Statek石英晶体,CX20SCSM1-20.0M,30/50/—/I,9pF,6G无线通信晶振，尺寸2.5x1.2mm，频率20MHZ，欧美进口晶振，斯塔克无源晶体，两脚贴片晶振，石英晶体振荡器，石英晶体，SMD晶振，石英振动子，小体积晶振，绿色环保晶振，无线通信晶振，导航定位晶振，变送器晶振，高性能晶振，低功耗晶振，蓝牙耳机晶振，高性能，基本模式，AT切割石英设计和制造的晶体具有高可靠性应用程序。

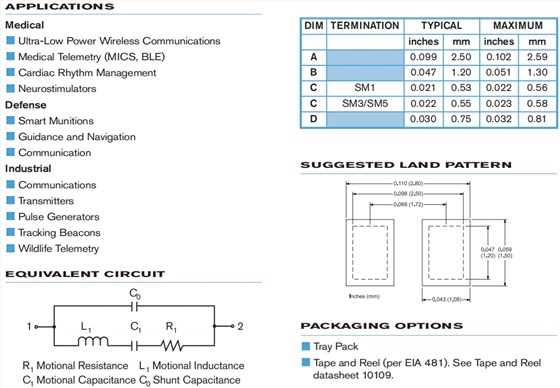

贴片石英晶振产品很适合用于医学，超低功耗无线通信，医疗遥测（MICS，BLE），心律管理，神经刺激器，智能弹药，制导与导航，还可以应用于工业，通讯，变送器，脉冲发生器，跟踪信标，野生动物遥测等领域。Statek石英晶体,CX20SCSM1-20.0M,30/50/—/I,9pF,6G无线通信晶振.
Statek石英晶体,CX20SCSM1-20.0M,30/50/—/I,9pF,6G无线通信晶振参数表
| Fundamental Frequency |
|
20.0 MHz | |||||||||||||||||
| Motional Resitance R1(Ω) | 150 | 50 | |||||||||||||||||
| Motional Capacitance C1(fF) | 1.2 | 1.6 | |||||||||||||||||
| Quality Factor Q | 60,000 | 80,000 | |||||||||||||||||
| Shunt Capacitance C0(pF) | 0.7 | 0.8 | |||||||||||||||||
| Calibration Tolerance1 | ±30 ppm,or tighter as required | ||||||||||||||||||
| Load Capacitance | 9 pF (unless specified otherwise) | ||||||||||||||||||
| Drive Level | 100 µW MAX | ||||||||||||||||||
| Frequency-Temperature Stability1,2 |
±50 ppm to ±10 ppm (Commercial) ±100 ppm to ±30 ppm (Industrial) ±100 ppm to ±30 ppm (Military) |
||||||||||||||||||
| Aging, First Year | 3 ppm MAX | ||||||||||||||||||
| Shock Survival3 | 5,000 g, 0.3 ms, 1/2 sine | ||||||||||||||||||
| Vibration Survival4 | 20 g, 10-2,000 Hz swept sine | ||||||||||||||||||
| Operating Temperature Range |
-10°C to +70°C (Commercial) -40°C to +85°C (Industrial) -55°C to +125°C (Military) |
||||||||||||||||||
| Storage Temperature Range | -55°C to +125°C | ||||||||||||||||||
| Max Process Temperature | 260°C for 20 seconds | ||||||||||||||||||
| Moisture Sensitivity Level (MSL) | This component is hermetically sealed and is not moisture sensitive. | ||||||||||||||||||

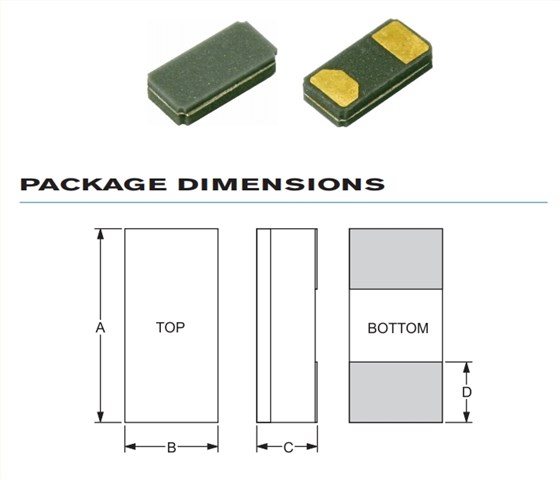

Statek石英晶体,CX20SCSM1-20.0M,30/50/—/I,9pF,6G无线通信晶振 尺寸图

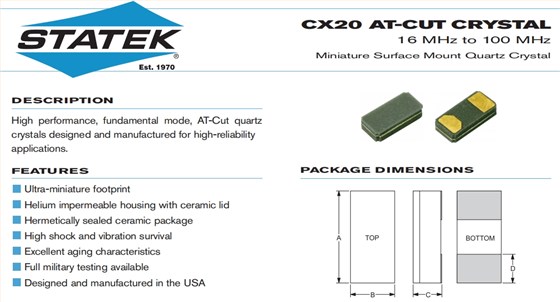

谐振器产品特性：
超小型占地面积
带陶瓷盖的不透氦外壳
密封陶瓷包装
高冲击和振动存活率
优异的老化特性
可进行全面军事测试
在美国设计和制造
