微晶音叉晶体,CM7V-T1A0.332.768kHz-12.5pF-±20ppm-TA-QC,6G智能卡晶振，尺寸3.2x1.5mm，频率32.768KHZ，石英晶体，Microcrystal，瑞士进口晶振，进口无源晶体，无源贴片晶振，石英贴片晶振，两脚贴片晶振，32.768KHZ晶振，音叉晶体，贴片石英晶振，无源晶振，3215mm无源晶体，32.768K音叉晶振，时钟晶振，石英晶体谐振器，轻薄型晶体，环保晶振，高品质晶振，低功耗晶振，高性能晶振，物联网专用晶振，智能卡专用晶振，工业应用晶振，医疗保健晶振，超薄设备晶振，可穿戴设备晶振，便携式设备晶振，

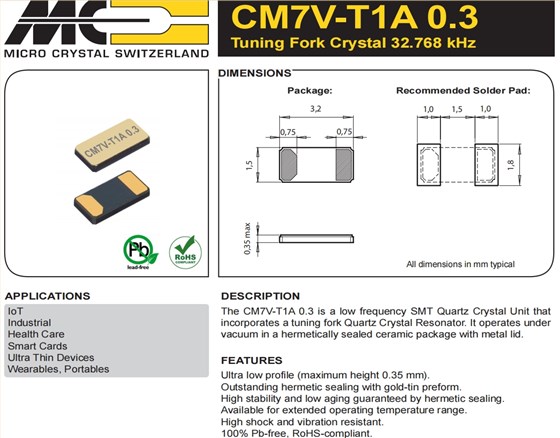

CM7V-T1A 0.3是一个低频SMT石英晶体单元，包含一个音叉石英晶体谐振器。它在真空下工作，在一个密封的陶瓷包装与金属盖子。该器件非常适合用于物联网，工业，医疗保健，智能卡，超薄设备，可穿戴设备，便携式设备等领域。微晶音叉晶体,CM7V-T1A0.332.768kHz-12.5pF-±20ppm-TA-QC,6G智能卡晶振.

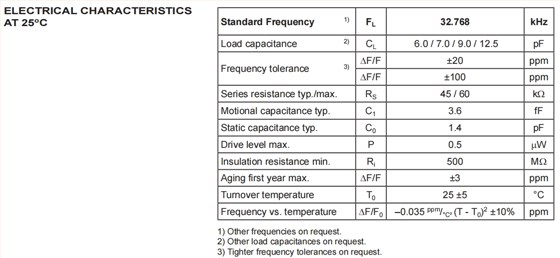

微晶音叉晶体,CM7V-T1A0.332.768kHz-12.5pF-±20ppm-TA-QC,6G智能卡晶振参数表
| Standard Frequency1) | FL | 32.768 | kHz | ||||||||||||
| Load capacitance2) | CL | 6.0 / 7.0 / 9.0 / 12.5 | pF | ||||||||||||
| Frequency tolerance3) | ΔF/F | ±20 | ppm | ||||||||||||
| ΔF/F | ±100 | ppm | |||||||||||||
| Series resistance typ./max. | RS | 45 / 60 | kΩ | ||||||||||||
| Motional capacitance typ. | C1 | 3.6 | fF | ||||||||||||
| Static capacitance typ. | C0 | 1.4 | pF | ||||||||||||
| Drive level max. | P | 0.5 | μW | ||||||||||||
| Insulation resistance min. | Ri | 500 | MΩ | ||||||||||||
| Aging first year max. | ΔF/F | ±3 | ppm | ||||||||||||
| Turnover temperature | T0 | 25 ±5 | °C | ||||||||||||
| Frequency vs. temperature | ΔF/F0 | –0.035ppm/°C²(T - T0)2±10% | ppm | ||||||||||||

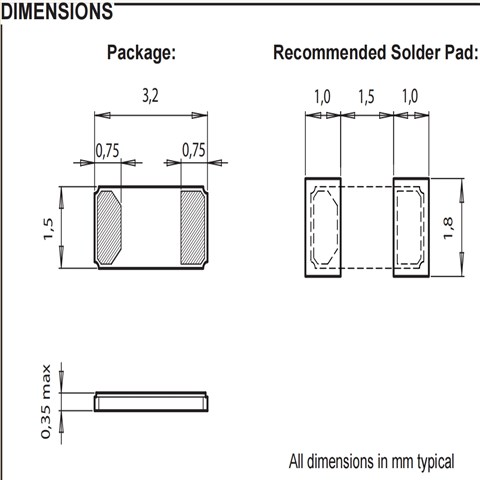

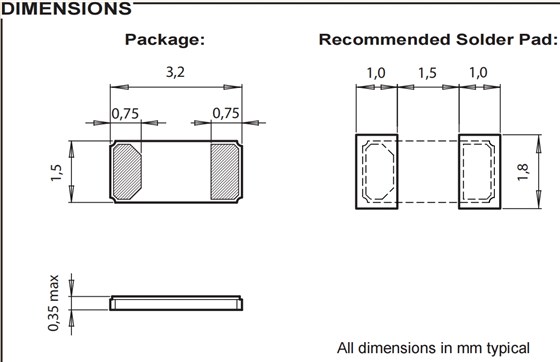

微晶音叉晶体,CM7V-T1A0.332.768kHz-12.5pF-±20ppm-TA-QC,6G智能卡晶振尺寸图
时钟晶振产品特性：
超低轮廓（最大高度0.35 mm)。
杰出的密封与金锡预制件。
采用密封性密封来保证，稳定性高，老化程度低。
可用于更扩展的工作温度范围。
高冲击和抗振动能力。
100%无pb，符合rohs标准。
