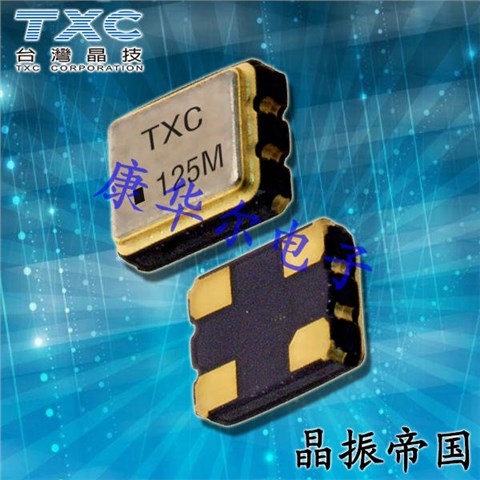

7X25000010,3225石英晶振,TXC有源晶振

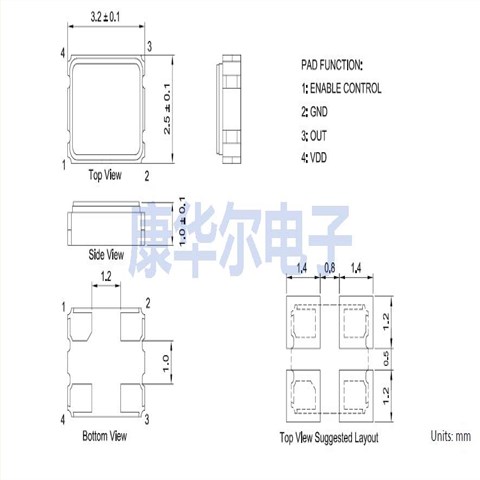

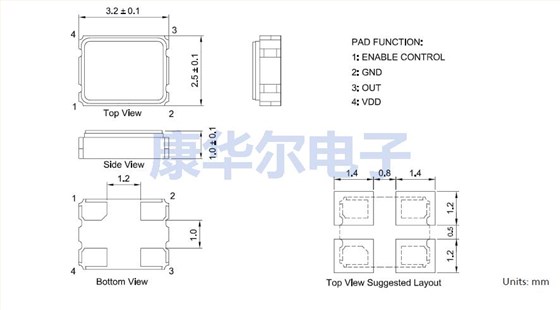

康华尔电子作为TXC台产晶技晶振正规授权代理商,原装现货供应7X25000010,这款3225封装有源石英晶振,输出25MHz稳定时钟信号,是工控与消费电子常用的高性能时钟器件.产品采用3.2×2.5×1.1mm标准3225四脚贴片封装,结构牢固,适配SMT高速贴装与无铅回流焊工艺.内置振荡电路,无需外围匹配电容,上电即可起振,有效简化硬件电路设计.CMOS方波输出,信号边沿规整,抖动低,抗电磁干扰能力强.工作温度覆盖-40℃~+85℃,全温区间频率稳定性优异,长期老化漂移小.TXC成熟晶片与封装工艺,出厂经过老化,温循可靠性测试,批次一致性高,产品符合RoHS环保标准,品质可靠,咨询热线:0755-27838351.
| 品牌 | TXC |
| 编码 | 7X25000010 |
| 型号 | 7X |
| 频率 | 25MHz晶振 |
| 电压 | 3.3V |
| 精度 | ±25PPm |
| 尺寸 | 3225 |
| 工作温度 | -40+85℃ |
7X25000010,3225石英晶振,TXC有源晶振
更多晶振型号
| 编码 | 欧美进口晶振 | 型号 | 工作温度 | 频率 | 频率公差 |
| FC5BQCBJF12.0-1-T1 | FOX | FC5BQ | -20℃~70℃ | 12MHz | ±30ppm |
| FC5BQCBKM12.0-T1 | FOX | FC5BQ | -40℃~85℃ | 12MHz | ±30ppm |
| FC5BQCCMC12.0-T1 | FOX | FC5BQ | 0℃~70℃ | 12MHz | ±30ppm |
| FC5BQCCMC16.0-T1 | FOX | FC5BQ | 0℃~70℃ | 16MHz | ±30ppm |
| FC5BQCCMC20.0-T1 | FOX | FC5BQ | 0℃~70℃ | 20MHz | ±30ppm |
| FC5BQCCMC24.0-T1 | FOX | FC5BQ | 0℃~70℃ | 24MHz | ±30ppm |
| FC5BQCCMC24.576-T1 | FOX | FC5BQ | 0℃~70℃ | 24.576MHz | ±30ppm |
| FC5BQCCMC25.0-T1 | FOX | FC5BQ | 0℃~70℃ | 25MHz | ±30ppm |
| FC5BQCCMM10.0-T1 | FOX | FC5BQ | -40℃~85℃ | 10MHz | ±30ppm |
| FC5BQCCMM12.0-T1 | FOX | FC5BQ | -40℃~85℃ | 12MHz | ±30ppm |
| FC5BQCCMM16.0-T1 | FOX | FC5BQ | -40℃~85℃ | 16MHz | ±30ppm |
| FC5BQCCMM20.0-T1 | FOX | FC5BQ | -40℃~85℃ | 20MHz | ±30ppm |
| FC5BQCCMM24.0-T1 | FOX | FC5BQ | -40℃~85℃ | 24MHz | ±30ppm |
| FC5BQCCMM25.0-T1 | FOX | FC5BQ | -40℃~85℃ | 25MHz | ±30ppm |
| FC5BQCCMM8.0-T1 | FOX | FC5BQ | -40℃~85℃ | 8MHz | ±30ppm |
| FC7ASBAMM9.216-T1 | FOX | FC7AS | -40℃~85℃ | 9.216MHz | ±50ppm |
| FC7ASBBGD24.0-T1 | FOX | FC7AS | -10℃~60℃ | 24MHz | ±50ppm |
| FC7ASBBMD10.0-T1 | FOX | FC7AS | -10℃~60℃ | 10MHz | ±50ppm |
| FC7ASBBMD10.0-T2 | FOX | FC7AS | -10℃~60℃ | 10MHz | ±50ppm |
| FC7ASBBMD20.0-T1 | FOX | FC7AS | -10℃~60℃ | 20MHz | ±50ppm |
| FC7ASBBMD20.0-T2 | FOX | FC7AS | -10℃~60℃ | 20MHz | ±50ppm |
| FC7ASBBMD24.576-T2 | FOX | FC7AS | -10℃~60℃ | 24.576MHz | ±50ppm |
| FC7ASBBMD25.0-T2 | FOX | FC7AS | -10℃~60℃ | 25MHz | ±50ppm |
| FC7ASBBMD9.8304-T2 | FOX | FC7AS | -10℃~60℃ | 9.8304MHz | ±50ppm |
| FC7ASBBMM16.0-T1 | FOX | FC7AS | -40℃~85℃ | 16MHz | ±50ppm |
| FC7ASBBMM9.216-T1 | FOX | FC7AS | -40℃~85℃ | 9.216MHz | ±50ppm |
| FC7ASCCGM7.6-T1 | FOX | FC7AS | -40℃~85℃ | 7.6MHz | ±30ppm |
| FC7BSBBGM25.0-T1 | FOX | FC7BS | -40℃~85℃ | 25MHz | ±50ppm |
| FC7BSCCEF8.0-T1 | FOX | FC7BS | -20℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCEM6.0-T1 | FOX | FC7BS | -40℃~85℃ | 6MHz | ±30ppm |
| FC7BSCCMC10.0-T1 | FOX | FC7BS | 0℃~70℃ | 10MHz | ±30ppm |
| FC7BSCCMC11.0592-T1 | FOX | FC7BS | 0℃~70℃ | 11.0592MHz | ±30ppm |
| FC7BSCCMC6.0-T1 | FOX | FC7BS | 0℃~70℃ | 6MHz | ±30ppm |
| FC7BSCCMC7.3728-T1 | FOX | FC7BS | 0℃~70℃ | 7.3728MHz | ±30ppm |
| FC7BSCCMC8.0-T1 | FOX | FC7BS | 0℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCMD8.0-T1 | FOX | FC7BS | -10℃~60℃ | 8MHz | ±30ppm |
| FC7BSCCMF8.0-T1 | FOX | FC7BS | -20℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCMM6.0-T1 | FOX | FC7BS | -40℃~85℃ | 6MHz | ±30ppm |
| FC7BSCCMM7.3728-T1 | FOX | FC7BS | -40℃~85℃ | 7.3728MHz | ±30ppm |
| FC7BSCCMM8.0-T1 | FOX | FC7BS | -40℃~85℃ | 8MHz | ±30ppm |
| FC8AQCCMC3.6864-T1 | FOX | FC8AQ | 0℃~70℃ | 3.6864MHz | ±30ppm |
| FC8AQCCMC4.0-T1 | FOX | FC8AQ | 0℃~70℃ | 4MHz | ±30ppm |
| FC8AQCCMC4.9152-T1 | FOX | FC8AQ | 0℃~70℃ | 4.9152MHz | ±30ppm |
| FC8AQCCMC6.0-T1 | FOX | FC8AQ | 0℃~70℃ | 6MHz | ±30ppm |
| FC8AQCCMM3.6864-T1 | FOX | FC8AQ | -40℃~85℃ | 3.6864MHz | ±30ppm |
| FC8AQCCMM4.0-T1 | FOX | FC8AQ | -40℃~85℃ | 4MHz | ±30ppm |
| FC8AQCCMM6.0-T1 | FOX | FC8AQ | -40℃~85℃ | 6MHz | ±30ppm |
| FC9SDCBEF8.0-T1 | FOX | FC9SD | -20℃~70℃ | 8MHz | ±30ppm |
| FC9SDCBMF8.0-T1 | FOX | FC9SD | -20℃~70℃ | 8MHz | ±30ppm |
| FC9SDCBMM8.0-T1 | FOX | FC9SD | -40℃~85℃ | 8MHz | ±30ppm |
| FK13LEIBM0.032768-T3 | FOX | FK13L | -40℃~85℃ | 32.768kHz | ±20ppm |
| FK145EIHM0.032768-T3 | FOX | FK145 | -40℃~85℃ | 32.768kHz | ±20ppm |
| FK161EIHM0.032768-T5 | FOX | FK161 | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSREIBM0.032768-T3 | FOX | FKFSR | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSREIHM0.032768-T3 | FOX | FKFSR | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSXEIHM0.032768-T3 | FOX | FKFSX | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKT15EIHD0.032768 | FOX | FKT15 | -10℃~60℃ | 32.768kHz | ±20ppm |
| FKT26EIBM0.032768 | FOX | FKT26 | -40℃~85℃ | 32.768kHz | ±20ppm |
