8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振,英国高利奇晶振,英国进口晶振,无源晶振,陶瓷面晶振,两脚无源晶振,贴片晶振,8038晶体谐振器,尺寸8.0x3.8mm,频率范围8~30MHZ,高抗冲击晶振,低损耗晶振,低功耗晶振,绿色环保晶振,高品质晶振,高性能晶振,安防晶振,军事应用晶振,仪器设备晶振,数码电子晶振,便携式设备晶振.
8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振特点:
晶振晶体基本模式
高抗冲击和振动性
军用温度范围-55+125℃选项
低功耗

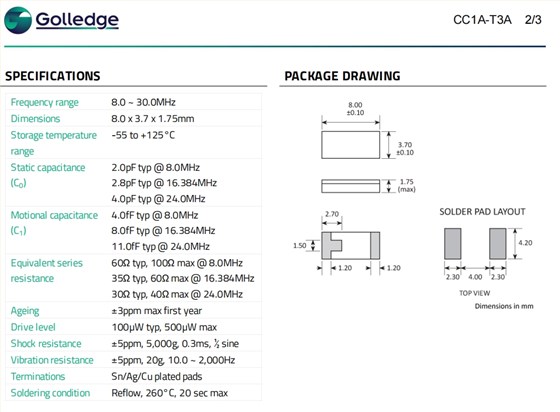

8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振参数表
| SPECIFICATIONS | |
| Frequency range8.0 ~ 30.0MHz | |
| Dimensions8.0 x 3.7 x 1.75mm | |
|
Storage temperature-55 to +125 °C range |
|
|
Static capacitance2.0pF typ @ 8.0MHz (C0)2.8pF typ @ 16.384MHz 4.0pF typ @ 24.0MHz |
|
|
Motional capacitance4.0fF typ @ 8.0MHz (C1)8.0fF typ @ 16.384MHz 11.0fF typ @ 24.0MHz |
|
|
Equivalent series60Ωtyp, 100Ωmax @ 8.0MHz resistance35Ωtyp, 60Ωmax @ 16.384MHz 30Ωtyp, 40Ωmax @ 24.0MHz |
|
| Ageing±3ppm max first year | |
| Drive level100µW typ, 500µW max | |
| Shock resistance±5ppm, 5,000g, 0.3ms, ½ sine | |
| Vibration resistance±5ppm, 20g, 10.0 ~ 2,000Hz | |
| TerminationsSn/Ag/Cu plated pads | |
| Soldering conditionReflow, 260 °C, 20 sec max |

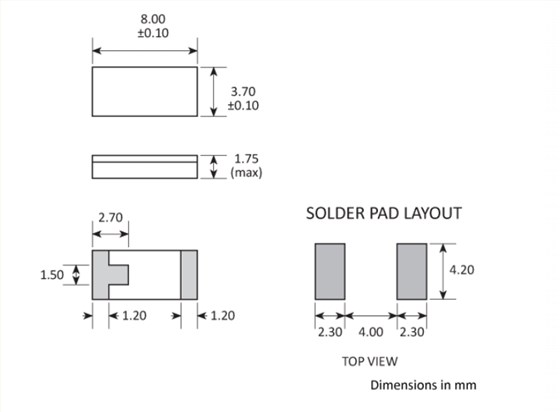

8038mm贴片陶瓷晶振,GolledgeCrystal,CC1A-T3A数字水表晶振尺寸图
