445W35J14M31818,14.31818MHz,9PF,5032MM

产品简介

445W35J14M31818,14.31818MHz,9PF,5032MM，美国CTS晶振公司,CTS晶振,445晶振,标准5.0mm x 3.2mm玻璃密封封装?基本晶体设计?频率范围8-50MHz?频率公差，±20ppm标准[其他公差]?频率稳定性，±30ppm标准[其他稳定性]?工作温度为-40°C至+85°C?磁带和卷轴包装标准，EIA-481?RoHS符合欧盟指令2011/65/欧盟-无铅终端处理-豁免7(c)-I，含铅的电气和电子元件。445型是一种低成本的设备，广泛应用于商业应用，包括笔记本电脑、电脑外设、视听、蓝牙和USB接口、pda和汽车电子产品。

产品详情

445W35J14M31818,14.31818MHz,9PF,5032MM

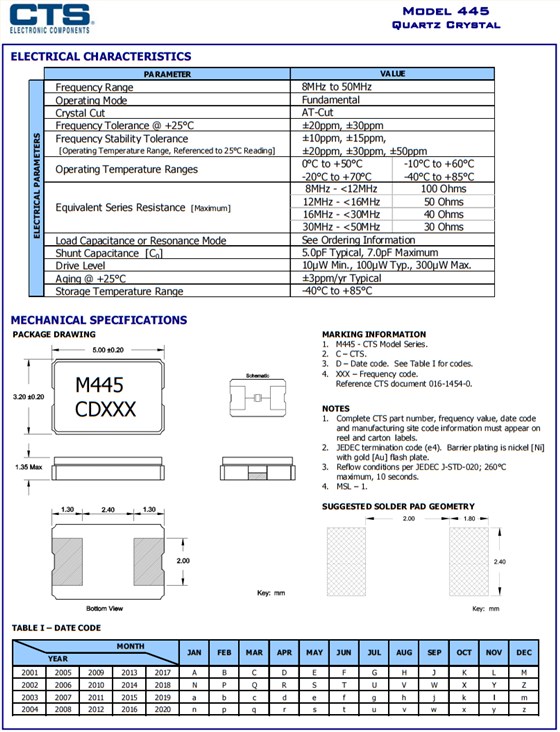

参数	VALUE
频率	8MHzto50MHz
工作模式	Fundamental
晶体切片[切向]	AT-Cut
频率公差@ +25°C	±20ppm, ±30ppm
频率稳定性公差 [工作温度范围，参考25°C]	±10ppm, ±15ppm, ±20ppm, ±30ppm, ±50ppm
工作温度范围	0°Cto+50°C -20°Cto+70°C	-10°Cto+60°C -40°Cto+85°C
等效串联电阻	8MHz- <12MHz	100Ohms
	12MHz- <16MHz	50 Ohms
	16MHz- <30MHz	40Ohms
	30MHz- <50MHz	30 Ohms
负载电容或共振模式	SeeOrderingInformation
并联电容[C0]	5.0pFTypical, 7.0pFMaximum
驱动电平	10µWMin., 100µWTyp., 300µWMax.
老化@ +25°C	±3ppm/yrTypical
储存温度范围	-40°Cto+85°C

445W35J14M31818,14.31818MHz,9PF,5032MM

445W35J14M31818,14.31818MHz,*9PF,5032MM

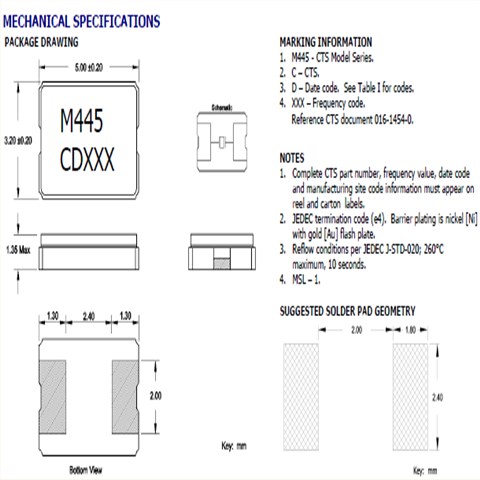

445（1）

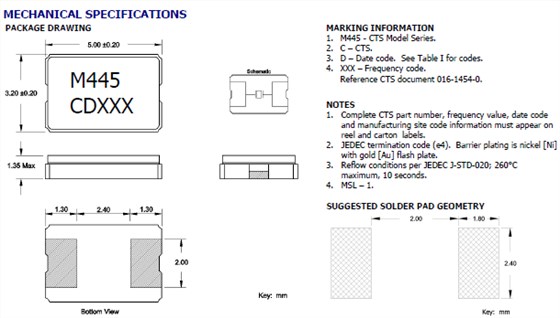

445（2）

CTS原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻
445C35A12M00000	CTS晶振	445	12MHz	±50ppm	±30ppm	10pF	50 Ohm
445C35A12M00000	CTS晶振	445	12MHz	±50ppm	±30ppm	10pF	50 Ohm
445C35A12M00000	CTS晶振	445	12MHz	±50ppm	±30ppm	10pF	50 Ohm
445C25D25M00000	CTS晶振	445	25MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D25M00000	CTS晶振	445	25MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D25M00000	CTS晶振	445	25MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D24M00000	CTS晶振	445	24MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D24M00000	CTS晶振	445	24MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D24M00000	CTS晶振	445	24MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D12M00000	CTS晶振	445	12MHz	±50ppm	±20ppm	18pF	50 Ohm
445C25D12M00000	CTS晶振	445	12MHz	±50ppm	±20ppm	18pF	50 Ohm
445C25D12M00000	CTS晶振	445	12MHz	±50ppm	±20ppm	18pF	50 Ohm
445C25D20M00000	CTS晶振	445	20MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D20M00000	CTS晶振	445	20MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D20M00000	CTS晶振	445	20MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D27M00000	CTS晶振	445	27MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D27M00000	CTS晶振	445	27MHz	±50ppm	±20ppm	18pF	40 Ohm
445C25D27M00000	CTS晶振	445	27MHz	±50ppm	±20ppm	18pF	40 Ohm
445I23D12M00000	CTS晶振	445	12MHz	±30ppm	±20ppm	18pF	50 Ohm
445I23D12M00000	CTS晶振	445	12MHz	±30ppm	±20ppm	18pF	50 Ohm
445I23D12M00000	CTS晶振	445	12MHz	±30ppm	±20ppm	18pF	50 Ohm
445I23D25M00000	CTS晶振	445	25MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D25M00000	CTS晶振	445	25MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D25M00000	CTS晶振	445	25MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D24M00000	CTS晶振	445	24MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D24M00000	CTS晶振	445	24MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D24M00000	CTS晶振	445	24MHz	±30ppm	±20ppm	18pF	40 Ohm
445I23D30M00000	CTS晶振	445	30MHz	±30ppm	±20ppm	18pF	30 Ohm
445I23D30M00000	CTS晶振	445	30MHz	±30ppm	±20ppm	18pF	30 Ohm
445I23D30M00000	CTS晶振	445	30MHz	±30ppm	±20ppm	18pF	30 Ohm
445C33A20M00000	CTS晶振	445	20MHz	±30ppm	±30ppm	10pF	40 Ohm
445C33A20M00000	CTS晶振	445	20MHz	±30ppm	±30ppm	10pF	40 Ohm
445C33A20M00000	CTS晶振	445	20MHz	±30ppm	±30ppm	10pF	40 Ohm
445C33D25M00000	CTS晶振	445	25MHz	±30ppm	±30ppm	18pF	40 Ohm
