406I35D14M31818 14.31818MHz 30PPM 6035 -40~85℃

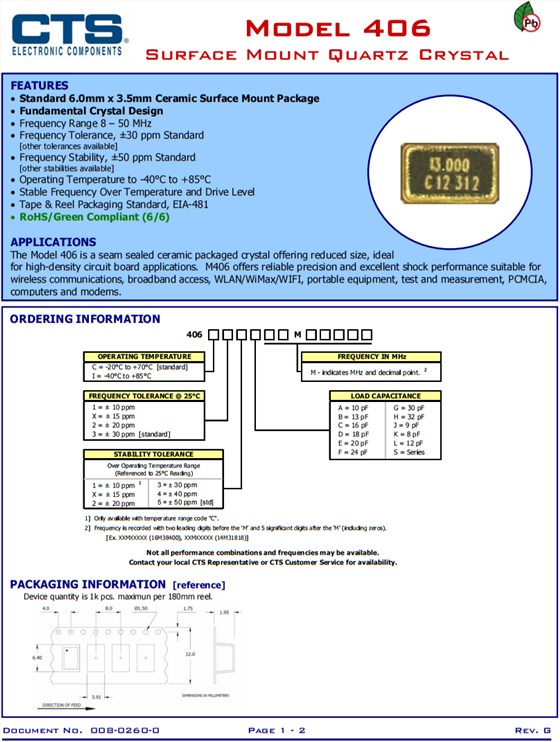

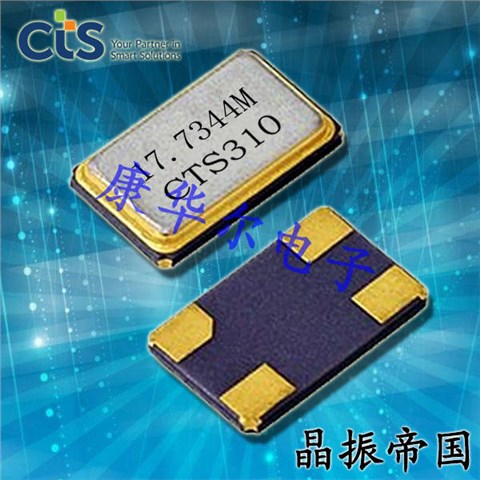

406I35D14M31818 14.31818MHz 30PPM 6035 -40~85℃，美国CTS晶振公司,CTS晶振,406晶振,?标准6.0mm x 3.5mm陶瓷表面安装包，基本晶体设计，频率范围8-52MHz?频率公差，±30ppm标准?频率稳定，±50ppm标准，工作温度至-40°C至+85°C，稳定频率过温度和驱动器水平，磁带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]，406型是一种接缝密封陶瓷封装的石英谐振器，具有优异的性能，包括；无线通信、宽带接入、WLAN/WiMax/WIFI、测试和测量、便携式设备和计算机外设。

406I35D14M31818 14.31818MHz 30PPM 6035 -40~85℃

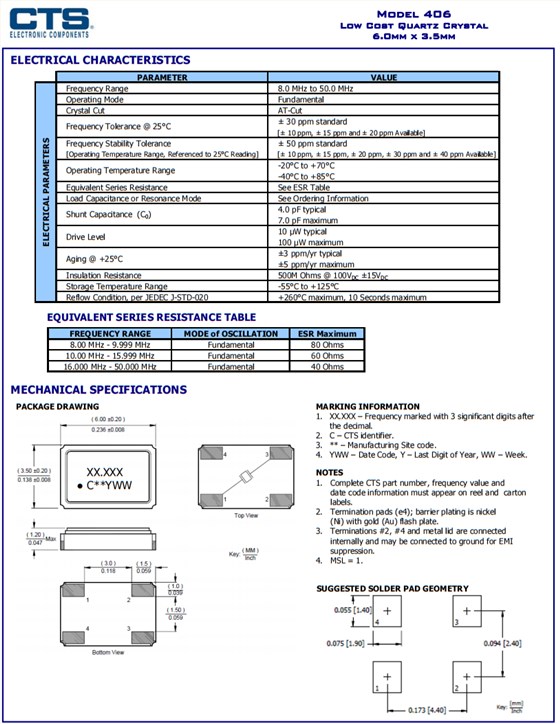

PARAMETER	VALUE
FrequencyRange	6.76438MHzto54MHz
OperatingMode	Fundamental
CrystalCut	AT-Cut
FrequencyTolerance@ +25°C	±30ppm, Standard
FrequencyStabilityTolerance [OperatingTemperatureRange, Referencedto+25°CReading]	±30ppm, Standard
OperatingTemperatureRanges	-20°Cto+70°C
	-30°Cto+85°C	-40°Cto+85°C
EquivalentSeriesResistance[Maximum]	6.76438MHz- <11MHz	80 Ohms
	11MHz- <15MHz	60Ohms
	15MHz- <35MHz	50Ohms
	35MHz- 54MHz	40 Ohms
LoadCapacitance	SeeOrderingInformation
ShuntCapacitance[C0]	5.0pFTypical, 7.0pFMaximum
DriveLevel	10µWTyp., 200µWMax.
Aging@+25°C	±3ppm/yrTypical
InsulationResistance	500MOhms@ DC100V
StorageTemperatureRange	-40°Cto+100°C

406I35D14M31818 14.31818MHz 30PPM 6035 -40~85℃

406（1）

406

CTS原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻
406C35B10M24500	CTS晶振	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B10M24500	CTS晶振	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B10M24500	CTS晶振	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm
406I35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm
406I35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm
406I35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm
406C35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	-
406C35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	-
406C35D08M00000	CTS晶振	406	8MHz	±50ppm	±30ppm	18pF	-
406C35B13M00000	CTS晶振	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B13M00000	CTS晶振	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B13M00000	CTS晶振	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406C35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406C35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406C35B14M00000	CTS晶振	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B14M00000	CTS晶振	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B14M00000	CTS晶振	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm
406C35B24M57600	CTS晶振	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm
406C35B24M57600	CTS晶振	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm
406C35B24M57600	CTS晶振	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm
406I35D10M00000	CTS晶振	406	10MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D10M00000	CTS晶振	406	10MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D10M00000	CTS晶振	406	10MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D12M00000	CTS晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm
406C35D25M00000	CTS晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm
406C35D25M00000	CTS晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm
406C35D25M00000	CTS晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm
406C35B18M43200	CTS晶振	406	18.432MHz	±50ppm	±30ppm	13pF	40 Ohm
406C35B18M43200	CTS晶振	406	18.432MHz	±50ppm	±30ppm	13pF	40 Ohm
406C35B18M43200	CTS晶振	406	18.432MHz	±50ppm	±30ppm	13pF	40 Ohm
406I35D14M31818	CTS晶振	406	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D14M31818	CTS晶振	406	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm
406I35D14M31818	CTS晶振	406	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm
