405C35B13M00000-13MHz-30PPM-13PF-CTS

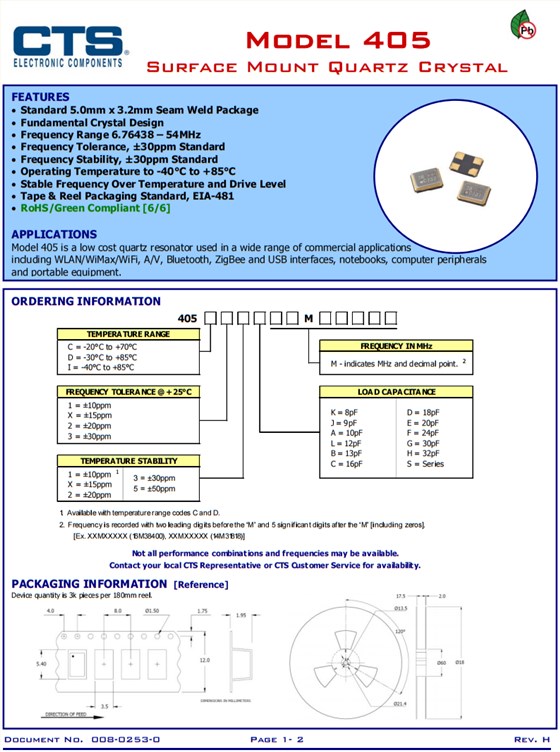

405C35B13M00000-13MHz-30PPM-13PF-CTS，美国CTS晶振公司,标准5.0mm x 3.2mm焊缝包装,基本晶体设计,频率范围6.76438-54MHz,频率公差，±30ppm标准,频率稳定，±30ppm标准,工作温度-40°C+85°C,稳定频率超过温度和驱动器水平,磁带和卷轴包装标准，EIA-481,RoHS/绿色兼容[6/6],405型是一种低成本的石英谐振器，广泛应用于包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外设和便携式设备。

405C35B13M00000-13MHz-30PPM-13PF-CTS

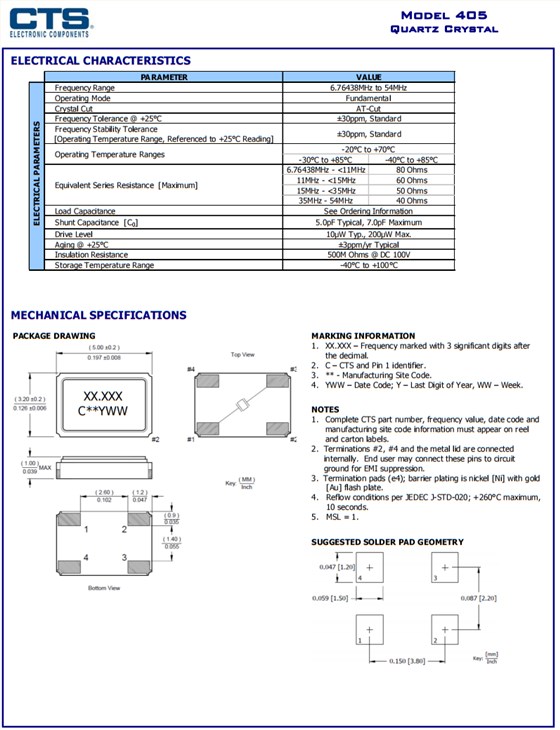

PARAMETER	VALUE
FrequencyRange	6.76438MHzto54MHz
OperatingMode	Fundamental
CrystalCut	AT-Cut
FrequencyTolerance@ +25°C	±30ppm, Standard
FrequencyStabilityTolerance [OperatingTemperatureRange, Referencedto+25°CReading]	±30ppm, Standard
OperatingTemperatureRanges	-20°Cto+70°C
	-30°Cto+85°C	-40°Cto+85°C
EquivalentSeriesResistance[Maximum]	6.76438MHz- <11MHz	80 Ohms
	11MHz- <15MHz	60Ohms
	15MHz- <35MHz	50Ohms
	35MHz- 54MHz	40 Ohms
LoadCapacitance	SeeOrderingInformation
ShuntCapacitance[C0]	5.0pFTypical, 7.0pFMaximum
DriveLevel	10µWTyp., 200µWMax.
Aging@+25°C	±3ppm/yrTypical
InsulationResistance	500MOhms@ DC100V
StorageTemperatureRange	-40°Cto+100°C

5032欧美CTS晶振405,405I35D48M00000四脚无源晶振

405（1）

405（2）

CTS原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻
405C35B16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm
405I35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm
405I35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm
405I35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm
405C35B25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm
405C35B25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm
405C35B25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm
405I35D25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm
405I35D25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm
405I35D25M00000	CTS晶振	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm
405C35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm
405C35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm
405C35D12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm
405C35B12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B12M00000	CTS晶振	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B24M00000	CTS晶振	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm
405C35B24M00000	CTS晶振	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm
405C35B24M00000	CTS晶振	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm
405C35D27M00000	CTS晶振	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm
405C35D27M00000	CTS晶振	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm
405C35D27M00000	CTS晶振	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm
405C35B16M36800	CTS晶振	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B16M36800	CTS晶振	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B16M36800	CTS晶振	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B19M20000	CTS晶振	405	19.2MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B19M20000	CTS晶振	405	19.2MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B19M20000	CTS晶振	405	19.2MHz	±50ppm	±30ppm	13pF	60 Ohm
405I35D48M00000	CTS晶振	405	48MHz	±50ppm	±30ppm	18pF	50 Ohm
405I35D48M00000	CTS晶振	405	48MHz	±50ppm	±30ppm	18pF	50 Ohm
405I35D48M00000	CTS晶振	405	48MHz	±50ppm	±30ppm	18pF	50 Ohm
405C35B11M05920	CTS晶振	405	11.0592MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B11M05920	CTS晶振	405	11.0592MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35B11M05920	CTS晶振	405	11.0592MHz	±50ppm	±30ppm	13pF	60 Ohm
405C35E16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	20pF	60 Ohm
405C35E16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	20pF	60 Ohm
405C35E16M00000	CTS晶振	405	16MHz	±50ppm	±30ppm	20pF	60 Ohm
405C35D10M00000	CTS晶振	405	10MHz	±50ppm	±30ppm	18pF	80 Ohm
405C35D10M00000	CTS晶振	405	10MHz	±50ppm	±30ppm	18pF	80 Ohm
405C35D10M00000	CTS晶振	405	10MHz	±50ppm	±30ppm	18pF	80 Ohm
