KDS水晶振荡子,1XSR025000AR25,DSO751SR娱乐设备晶振，尺寸7.0×5.0mm，频率25MHZ，电压3.3V，输出CMOS，日本大真空晶振，KDS有源晶振，日本进口晶振，7050mm有源晶振，有源贴片晶振，有源晶体振荡器，四脚有源晶振，CMOS输出有源晶振，水晶振荡子，25MHZ有源晶振，低电压有源晶振，低功耗有源晶振，低损耗有源晶振，低相位有源晶振，低抖动有源晶振，娱乐设备有源晶振，照相机专用有源晶振，模块应用有源晶振，车载音响有源晶振，多媒体设备有源晶振，千兆以太网有源晶振，具有低电压低功耗的特点。
进口有源晶振产品比较适合用于电脑、娱乐设备，DSC、DVD、蓝光、HDTV、DVC和HDD，WiMAX，照相机模块，千兆以太网，车载多媒体设备等应用.KDS水晶振荡子,1XSR025000AR25,DSO751SR娱乐设备晶振.

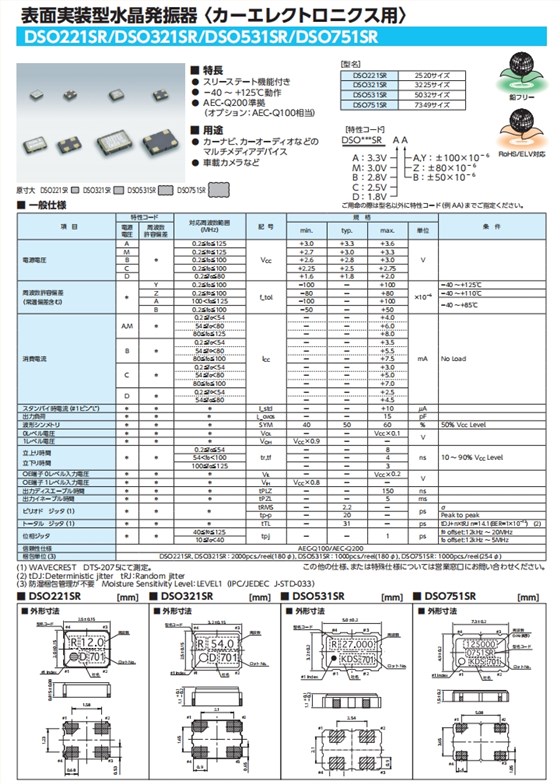

KDS水晶振荡子,1XSR025000AR25,DSO751SR娱乐设备晶振参数表
| 项目 | 特性代码 |
输出频率范围 ( MHz ) |
符号 | 规格 | 条件 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
电源 电压 |
频率 允许偏差 |
最小。 | typ | 最大。 | 单位 | |||||
| 电源电压 | A | ＊ | 0.2≦fo≦167 | V抄送 | +3.0 | +3.3 | +3.6 | V | ||
| M | 0.2≦fo≦167 | +2.7 | +3.0 | +3.3 | ||||||
| B | 0.2≦fo≦157 | +2.6 | +2.8 | +3.0 | ||||||
| C | 0.2≦fo≦157 | +2.25 | +2.5 | +2.75 | ||||||
| D | 0.2≦fo≦80 | +1.6 | +1.8 | +2.0 | ||||||
|
频率允许偏差 (包括常温偏差) |
＊ | A | 0.2≦fo≦167 | f_tol | -100 | - | +100 | ×10-6 | -40?+85℃ |
-10?+70℃ (标准工作温度范围) |
| B | 0.2≦fo≦125 | -50 | - | +50 | ||||||
| C | 0.2≦fo≦80 | -30 | - | +30 | -20?+70℃ | |||||
| D | 0.2≦fo≦80 | -25 | - | +25 | ||||||
| E | 0.2≦fo≦50 | -20 | - | +20 | -10-+70℃ | |||||
| 消耗电流 | a，m | ＊ | 0.2≦fo<32 | I抄送 | - | - | 1.8 | mA | No Load | |
| 32≦fo<54 | - | - | 2.5 | |||||||
| 54≦fo<80 | - | - | 5.0 | |||||||
| 80≦fo<125 | - | - | 6.0 | |||||||
| 125≦fo≦167 | - | - | 8.0 | |||||||
| B | ＊ | 0.2≦fo<32 | - | - | 1.8 | |||||
| 32≦fo<54 | - | - | 2.5 | |||||||
| 54≦fo<125 | - | - | 5.0 | |||||||
| 125≦fo≦157 | - | - | 7.0 | |||||||
| C | ＊ | 0.2≦fo<32 | - | - | 1.5 | |||||
| 32≦fo<54 | - | - | 2.0 | |||||||
| 54≦fo<125 | - | - | 4.0 | |||||||
| 125≦fo≦157 | - | - | 6.0 | |||||||
| D | ＊ | 0.2≦fo<32 | - | - | 1.0 | |||||
| 32≦fo<54 | - | - | 1.4 | |||||||
| 54≦fo≦80 | - | - | 3.0 | |||||||
| 待机时电流( #1针" l " ) | ＊ | ＊ | ＊ | I_std | - | - | 10 | μA | ||
| 输出负载 | ＊ | ＊ | ＊ | L_CMOS | - | - | 15 | pF | ||
| a，m | 0.2≦fo≦80 | - | - | 30 | ||||||
| 波形对称 | ＊ | ＊ | fo<50 | SYM | 45 | 50 | 55 | % | 50% V抄送级别 | |
| fo≧50 | 40 | 50 | 60 | |||||||
| 0电平电压 | ＊ | ＊ | ＊ | VOL | - | - | V抄送×0.1 | V | ||
| 1电平电压 | ＊ | ＊ | ＊ | VOH | V抄送×0.9 | - | - | |||
| 上升时间下降时间 | a，m，b，c | ＊ | 0.2≦fo≦54 | tr，tf | - | - | 5（4） | 美国全国广播公司 |
L_CMOS: 15pF 10?90% V抄送级别 ( 20-80% V抄送Level ) |
|
| D | 0.2≦fo≦54 | - | - | 7（6） | ||||||
| ＊ |
54 |
- | - | 4（3） | ||||||
| ＊ | 100≦fo≦167 | - | - | 3（2.5） | ||||||
| a，m | 0.2≦fo≦54 | - | - | 10 | L_CMOS: 30pF 10?90% V抄送级别 | |||||
| a，m |
54 |
- | - | 6 | ||||||
| OE引脚0电平输入电压 | ＊ | ＊ | ＊ | VIL | - | - | V抄送×0.2 | V | ||
| OE引脚1电平输入电压 | ＊ | ＊ | ＊ | VIH | V抄送×0.8 | - | - | |||
| 输出禁用时间 | ＊ | ＊ | ＊ | tPLZ | - | - | 150 | 美国全国广播公司 | ||
| 输出使能时间 | ＊ | ＊ | ＊ | tPZL | - | - | 1 | 微软 | ||
| 句点抖动(1) | ＊ | ＊ | ＊ | tRMS | - | 2.2 | - | 销售点 | σ | |
| tp-p | - | 20 | - | Peak to peak | ||||||
| 总抖动(1) | ＊ | ＊ | ＊ | tTL | - | 31 | - | 销售点 | tDJ+n×tRJ n=14.1(BER=1×10-12(2) | |
| 相位抖动 | ＊ | ＊ | 40≦fo≦167 | tpj | - | - | 1 | 销售点 | fo offset:12kHz?20MHz | |
| 10≦fo<40 | fo offset:12kHz?5MHz | |||||||||
| 包装单位(3) | 1000pcs./reel (φ254 ) | |||||||||
KDS水晶振荡子,1XSR025000AR25,DSO751SR娱乐设备晶振 尺寸图
KDS水晶振荡子,1XSR025000AR25,DSO751SR娱乐设备晶振
SMD振荡器产品特点:
7349大小
低功耗: 8mA max.(167MHz，3.3V )
电源电压: 1.8V/2.5V/2.8V/3.0V/3.3V
支持窄偏差:±20×10-6/±30×10-6/±50×10-6/±100×10-6
基于基波AT切振子的无倍频输出至167MHz
低抖动、高性能
矮型对应: 1.5mm
符合AEC-Q200标准(可选:相当于AEC-Q100 ) ( DSO221SR/DSO321SR )
CMOS出口
| 晶振厂家 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | |||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | ||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | ||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF | 20PPM |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF | 20PPM |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF | 30PPM |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF | 20PPM |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF | 50PPM |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF | 30ppm |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF | 20ppm |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF | 15ppm |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF | 50ppm |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF | 20ppm |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM |
| KDS晶振 | SB103CE1MM | SINGLE | ||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | |||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | ||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | ||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | ||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | ||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | ||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | ||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | ||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | ||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | ||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | ||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | ||
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | ||
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM |
