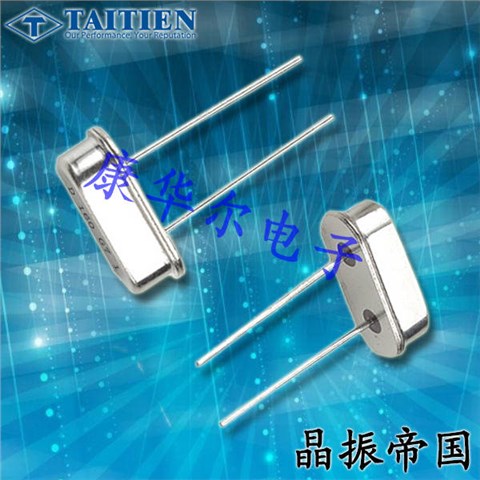

XIHEELAANF-7.372800|10.8*4.5mm|7.3728M|20PF|-40°C ~ 85°C

产品简介

XIHEELAANF-7.372800|10.8*4.5mm|7.3728M|20PF|-40°C ~ 85°C,TATIEN晶振,XI晶振,XIHEELAANF-4.000000晶振,无源晶振,插件晶振,石英晶振,49S晶振,无线路由器晶振,电子体重秤晶振,XIHCELAANF-16.000000晶振,XIHEELAANF-25.000000晶振,XIHEELAANF-16.000000晶振

产品详情

XIHEELAANF-7.372800|10.8*4.5mm|7.3728M|20PF|-40°C ~ 85°C，台湾泰艺晶振公司，TAITIEN晶振,XI晶振,XIHEELAANF-4.000000晶振,无源晶振,插件晶振,石英晶振,49S晶振,无线路由器晶振,电子体重秤晶振,XIHCELAANF-16.000000晶振,XIHEELAANF-25.000000晶振,XIHEELAANF-16.000000晶振

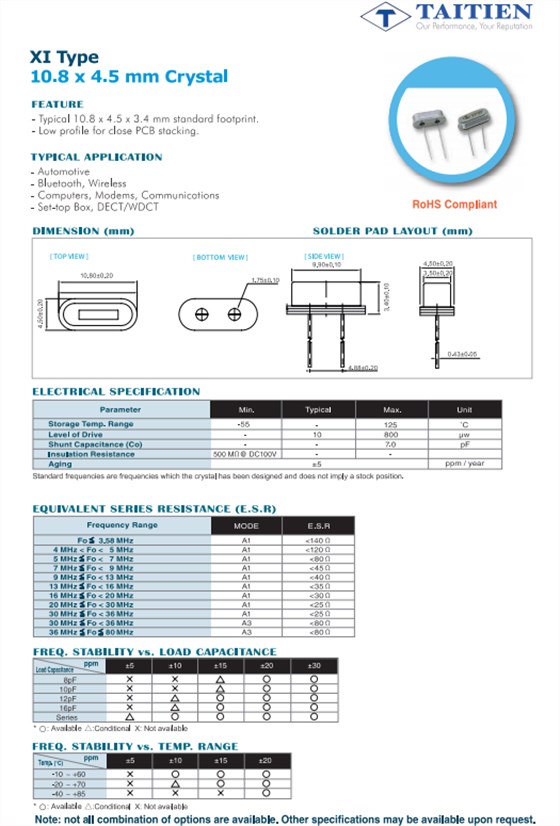

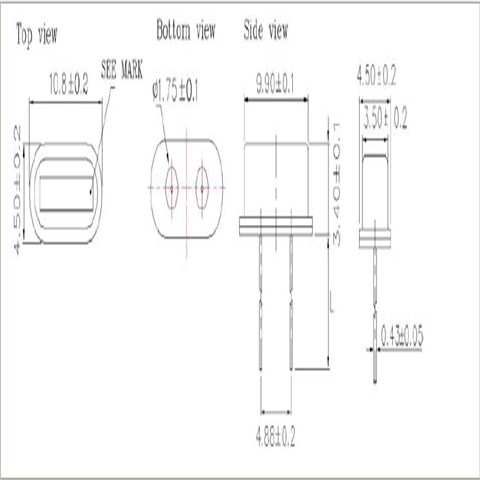

XIHEELAANF-7.372800|10.8*4.5mm|7.3728M|20PF|-40°C ~ 85°C

泰艺晶振规格	单位	X3晶振频率范围	石英晶振基本条件
标准频率	f_nom	7.3728MHZ	标准频率
储存温度	T_stg	-40°C～+125°C	裸存
工作温度	T_use	-10°C～+125°C	标准温度
激励功率	DL	10~200μW Max.	推荐:1μW～100μW
频率公差	f_— l	±10×10-6(标准), (±15×10-6～±50 ×10-6可用)	+25°C对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.kdscrystal.com/
负载电容	CL	3.0pF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C —+85°C,DL = 100μW
频率老化	f_age	±1,3×10-6/year Max.	+25°C,第一年

XIHEELAANF-7.372800|10.8*4.5mm|7.3728M|20PF|-40°C ~ 85°C

TAITIEN原厂编码	生产厂家	型号	Type 系列	Frequency	频率稳定度	频率偏差	负载电容
X2AEECNANF-24.000000	TAITIEN晶体	X2	MHz Crystal	24MHz	±30ppm	±30ppm	8pF
X2AGHINANF-48.000000	TAITIEN晶体	X2	MHz Crystal	48MHz	±100ppm	±50ppm	8pF
X2CGGCSANF-25.000000	TAITIEN晶体	X2	MHz Crystal	25MHz	±50ppm	±50ppm	10pF
X2CGGCSANF-30.000000	TAITIEN晶体	X2	MHz Crystal	30MHz	±50ppm	±50ppm	10pF
X2DCCCNANF-25.000000	TAITIEN晶体	X2	MHz Crystal	25MHz	±20ppm	±20ppm	12pF
X2DEECNANF-24.000000	TAITIEN晶体	X2	MHz Crystal	24MHz	±30ppm	±30ppm	12pF
X2DEECNANF-25.000000	TAITIEN晶体	X2	MHz Crystal	25MHz	±30ppm	±30ppm	12pF
X2FCCLNANF-16.000000	TAITIEN晶体	X2	MHz Crystal	16MHz	±20ppm	±20ppm	16pF
X2FCCLNANF-25.000000	TAITIEN晶体	X2	MHz Crystal	25MHz	±20ppm	±20ppm	16pF
X2GCELNANF-24.000000	TAITIEN晶体	X2	MHz Crystal	24MHz	±30ppm	±20ppm	18pF
X2GCELNANF-25.000000	TAITIEN晶体	X2	MHz Crystal	25MHz	±30ppm	±20ppm	18pF
X2GEECNANF-24.000000	TAITIEN晶体	X2	MHz Crystal	24MHz	±30ppm	±30ppm	18pF
X2GEGLNANF-24.000000	TAITIEN晶体	X2	MHz Crystal	24MHz	±50ppm	±30ppm	18pF
X2GGGLNANF-12.000000	TAITIEN晶体	X2	MHz Crystal	12MHz	±50ppm	±50ppm	18pF
XJGPPCAANF-25.000000	TAITIEN晶体	XJ	MHz Crystal	25MHz	±15ppm	±15ppm	18pF
XJDECCAANF-4.194304	TAITIEN晶体	XJ	MHz Crystal	4.194304MHz	±20ppm	±30ppm	12pF
X2HCCCNANF-12.000000	TAITIEN晶体	X2	MHz Crystal	12MHz	±20ppm	±20ppm	20pF
XIHEELAANF-11.059200	TAITIEN晶体	XI	MHz Crystal	11.0592MHz	±30ppm	±30ppm	20pF
XIHEELAANF-16.000000	TAITIEN晶体	XI	MHz Crystal	16MHz	±30ppm	±30ppm	20pF
XIHEELAANF-25.000000	TAITIEN晶体	XI	MHz Crystal	25MHz	±30ppm	±30ppm	20pF
XIHEELAANF-4.000000	TAITIEN晶体	XI	MHz Crystal	4MHz	±30ppm	±30ppm	20pF
XIHEELAANF-7.372800	TAITIEN晶体	XI	MHz Crystal	7.3728MHz	±30ppm	±30ppm	20pF
XIHEELAANF-8.000000	TAITIEN晶体	XI	MHz Crystal	8MHz	±30ppm	±30ppm	20pF
XJCBBIAANF-10.368000	TAITIEN晶体	XJ	MHz Crystal	10.368MHz	±10ppm	±10ppm	10pF
XIHCELAANF-16.000000	TAITIEN晶体	XI	MHz Crystal	16MHz	±30ppm	±20ppm	20pF
