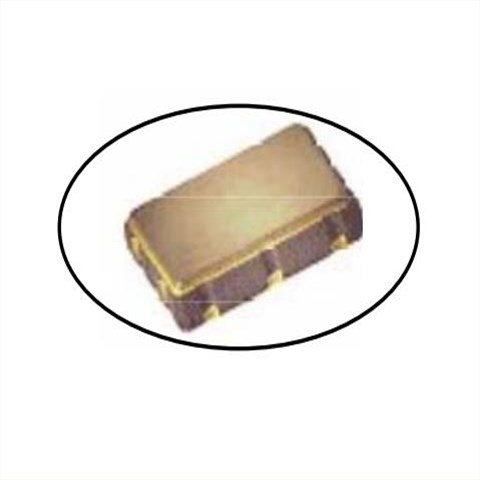

VCXO,CVXO-018TX-25-10.0,7050mm,10MHz,Crystek无线网络晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CVXO-018T，编码为：CVXO-018TX-25-10.0，频率为：10.000MHz，频率稳定性：±25ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，HCMOS输出晶振，VCXO压控晶体振荡器，压控晶振，有源晶振，石英晶振，电源电压3.3V，设计以满足当今的3.3V电压控制晶体振荡器SMD应用的要求。CVXO-018T为ICT（电路内测试）提供了禁用功能。石英晶体振荡器，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，低电平，低损耗，低耗能等应用。应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，物联网晶振，GPS定位系统，导航仪晶振，智能家居等应用。
VCXO,CVXO-018TX-25-10.0,7050mm,10MHz,Crystek无线网络晶振,参数表
| Frequency Range: | 10.000MHz |
| Frequency Stability: | ±25ppm to ±100ppm |
| Temperature Range: | 0°C to 70°C |
| Operating: | -20°C to 70°C |
| (Option M) | -40°C to 85°C |
| (Option X) | -45°C to 90°C |
| Storage: | 3.3V ±0.3V |
| Input Voltage: | 1.65V ±1.65V |
| Control Voltage: | 1.65V ±0.25V |
| Settability* At Nominal: | ±100ppm Min |
| Frequency Pulling: | 10mA Max |
| Input Current: | HCMOS |
| Output: | 15pF |
| Load: | 40/60% Max @ 50% Vdd |
| Symmetry: | 5ns Max @ 20% to 80% Vdd |
| Rise/Fall Time: | "0" = 10% Vdd Max |
| Logic: | "1" = 90% Vdd Min |
| Linearity: | ±10% Max |
| Aging: | <3ppm 1st year, <1ppm every year thereafter |
VCXO,CVXO-018TX-25-10.0,7050mm,10MHz,Crystek无线网络晶振,尺寸图
| 进口晶振编码 | 品牌 | 型号 | 类型 | 频率 | 频率稳定度 |
| CVXO-018TX-50-12.288 | Crystek晶振 | CVXO-018T | VCXO | 12.288MHz | ±50ppm |
| CVXO-018TX-50-12.352 | Crystek晶振 | CVXO-018T | VCXO | 12.352MHz | ±50ppm |
| CVXO-018TX-50-13.5 | Crystek晶振 | CVXO-018T | VCXO | 13.5MHz | ±50ppm |
| CVXO-018TX-50-16.384 | Crystek晶振 | CVXO-018T | VCXO | 16.384MHz | ±50ppm |
| CVXO-018TX-50-19.44 | Crystek晶振 | CVXO-018T | VCXO | 19.44MHz | ±50ppm |
| CVXO-018TX-50-20 | Crystek晶振 | CVXO-018T | VCXO | 20MHz | ±50ppm |
| CVXO-018TX-50-24.576 | Crystek晶振 | CVXO-018T | VCXO | 24.576MHz | ±50ppm |
| CVXO-018TX-50-24.704 | Crystek晶振 | CVXO-018T | VCXO | 24.704MHz | ±50ppm |
| CVXO-018TX-50-25 | Crystek晶振 | CVXO-018T | VCXO | 25MHz | ±50ppm |
| CVXO-018TX-50-27 | Crystek晶振 | CVXO-018T | VCXO | 27MHz | ±50ppm |
| CVXO-018TX-50-4.096 | Crystek晶振 | CVXO-018T | VCXO | 4.096MHz | ±50ppm |
| CVXO-018TX-50-8 | 晶振厂家 | CVXO-018T | VCXO | 8MHz | ±50ppm |
| CVXO-018TX-50-8.192 | Crystek晶振 | CVXO-018T | VCXO | 8.192MHz | ±50ppm |
| CVXO-018TX-50-32 | Crystek晶振 | CVXO-018T | VCXO | 32MHz | ±50ppm |
| CVXO-018TX-50-32.768 | Crystek晶振 | CVXO-018T | VCXO | 32.768MHz | ±50ppm |
| CVXO-018TX-50-34.56 | Crystek晶振 | CVXO-018T | VCXO | 34.56MHz | ±50ppm |
| CVXO-018TX-50-35.328 | Crystek晶振 | CVXO-018T | VCXO | 35.328MHz | ±50ppm |
| CVXO-018TX-50-38.88 | Crystek晶振 | CVXO-018T | VCXO | 38.88MHz | ±50ppm |
| CVXO-018TX-50-44.736 | Crystek晶振 | CVXO-018T | VCXO | 44.736MHz | ±50ppm |
| CVXO-018TX-25-10.0 | Crystek晶振 | CVXO-018T | VCXO | 10MHz | ±25ppm |
| CVXO-018TX-50-51.84 | Crystek晶振 | CVXO-018T | VCXO | 51.84MHz | ±50ppm |
