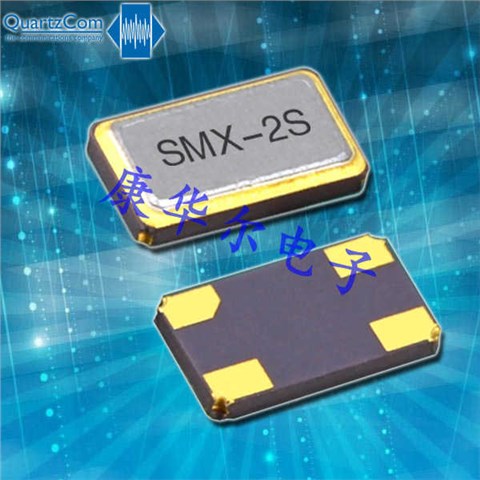

6035mm四脚晶振,SMX-2S水晶振动子,QuartzCom小尺寸晶振

产品简介

6035mm四脚晶振,SMX-2S水晶振动子,QuartzCom小尺寸晶振，尺寸6.0x3.5mm，频率范围8~240MHZ，石英通欧美晶振，无源贴片晶振，QuartzCom晶体谐振器，四脚无源晶振，石英晶体谐振器，石英贴片晶振，石英无源晶振，无源晶振，SMD晶振，水晶振动子，轻薄型晶振，无铅晶振，GPS导航晶振，汽车音响晶振，便携式设备晶振，娱乐设备晶振，电信专用晶振，数字音频晶振，投影仪晶振，高性能晶振，高品质晶振，低损耗晶振，低功耗晶振，低成本晶振，具有良好的稳定性能以及可靠性能。

石英晶振产品特别适合用于GPS导航，汽车音响，便携式设备，娱乐设备，电信，数字音频，投影仪等应用。6035mm四脚晶振,SMX-2S水晶振动子,QuartzCom小尺寸晶振.

产品详情

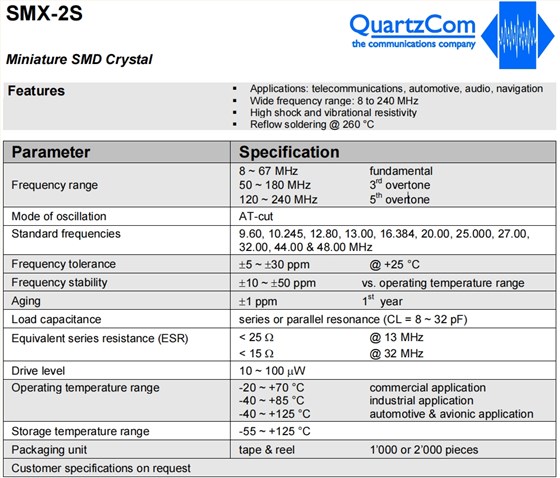

6035mm四脚晶振,SMX-2S水晶振动子,QuartzCom小尺寸晶振参数表

Parameter	Specification
Frequency range	8 ~ 67 MHz 50 ~ 180 MHz 120 ~ 240 MHz	fundamental 3rdovertone 5thovertone
Mode of oscillation	AT-cut
Standard frequencies	9.60, 10.245, 12.80, 13.00, 16.384, 20.00, 25.000, 27.00, 32.00, 44.00 & 48.00 MHz
Frequency tolerance	土5 ~土30 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25Ω < 15Ω	@ 13 MHz @ 32 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’000 pieces
Customer specifications on request
