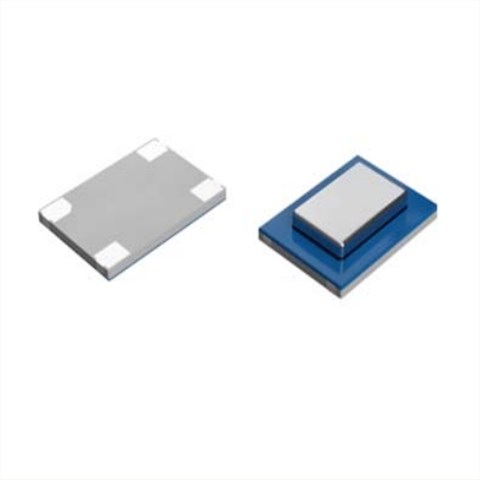

780HX‐4,EHX2000GKLGOFL‐PF,7050mm,ACT艾西迪晶振,英国进口晶振,艾西迪无源晶振,无源贴片晶振,轻薄型晶振,水晶振动子,SMD晶振,无源晶振,7050mm进口晶振,20MHZ谐振器,尺寸7.0×5.0mm,频率20MHZ,无铅晶振,高质量晶振,高性能晶振,低损耗晶振,低功耗晶振,娱乐设备晶振,智能家居晶振,视听设备晶振,数字设备晶振,无线蓝牙晶振.
780HX‐4,EHX2000GKLGOFL‐PF,7050mm,ACT艾西迪晶振特点:
符合RoHS和REACH
SMD晶体8MHz的宽频率范围
卓越的稳定性范围
780HX‐4,EHX2000GKLGOFL‐PF,7050mm,ACT艾西迪晶振参数表
 Parameters
|
Specification | Remarks | ||||||
| Frequency range | F_nom | 20.0MHz | ||||||
| Frequency tolerance | F_tol | ±20.0ppm ~ ±50.0ppm | ||||||
| Frequency stability over operatingtemperature range | F_stb | ±20.0ppm ~ ±100.0ppm | Table 2 | |||||
| Operating temperature range | T_use | 0°C ~ +60°C to ‐40°C ~ +85°C | Table 2 | |||||
| Storage temperature | T_stg | ‐40°C ~ +85°C | ||||||
| Load capacitance | CL | 8.0pF ~ 30.0pF | ||||||
| Equivalentseries resistance | ESR | Table 1 | ||||||
| Shunt capacitance | C0 | 7.0pF max | ||||||
| Drive level | DL | 200μW max | ||||||
| Frequency aging | F_age | ±5.0ppm / year max | ||||||
| Moisture sensitivity level | MSL | 1 (unlimited) | ||||||
| Electrostatic discharge | ESD | Not applicable | ||||||
| Insulation resistance | IR | 500MΩ min | At 100V DC | |||||

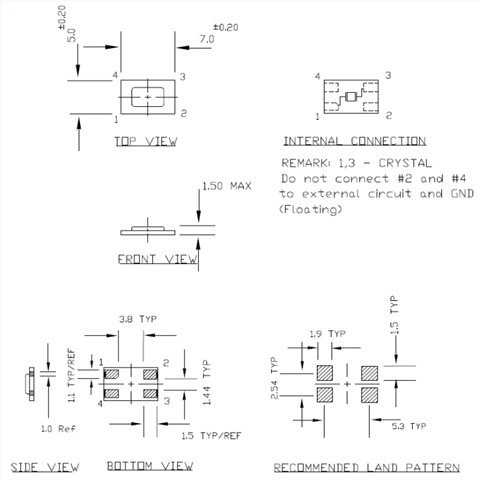

780HX‐4,EHX2000GKLGOFL‐PF,7050mm,ACT艾西迪晶振尺寸图
