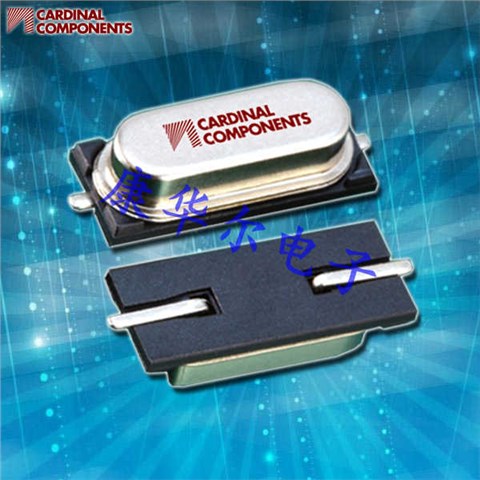

CSM1Z-A1B2C3-90-8.0D18-8.0000MHZ-18PF-50PPM-CSM1，欧美进口晶振，低轮廓表面安装晶体，基数“at带”表面安装晶体是目前市场上最容易获得的。许多流行的频率在我们的工厂里都有库存。
CSM1Z-A1B2C3-90-8.0D18-8.0000MHZ-18PF-50PPM-CSM1
| OperatingTemperature: |
- 10°C ~ +70°C -40°C ~ +85°C |
Standard | |||||||||||||||
| FrequencyStability: | ±100 | ppm | |||||||||||||||
| ±50 | ppmStandard | ||||||||||||||||
| ±30 | ppm | ||||||||||||||||
| ±15 | ppm | ||||||||||||||||
| FrequencyTolerance: | ±100 | ppm | |||||||||||||||
| (at25°C) | ±50 | ppmStandard | |||||||||||||||
| ±30 | ppm | ||||||||||||||||
| ±10 | ppm | ||||||||||||||||
| Load | Capacitance: |
Standard 18 pF or series. Please specify your required |
load. | ||||||||||||||
| Resistance: |
Maximum resistance corresponds to frequency. See chart below. |
||||||||||||||||
| Standard: |
Mode: Fundamental or 3rd Overtone Shunt Capacitance: 7 pF Max Aging: ± 5 ppm/year Drive Level: 1.0 mW Max |
||||||||||||||||
| OptionalFeatures:Tape and Reel (1K per Reel) | |||||||||||||||||
CSM1Z-A1B2C3-90-8.0D18-8.0000MHZ-18PF-50PPM-CSM1
| Cardinal原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 |
| CSM1Z-A5B2C3-40-14.31818D18 | Cardinal Components Inc. | CSM1 | 14.31818MHz | ±50ppm |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal Components Inc. | CSM1 | 24MHz | ±50ppm |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal Components Inc. | CSM1 | 30MHz | ±50ppm |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal Components Inc. | CSM1 | 22.1184MHz | ±50ppm |
| CSM1Z-A0B2C3-100-5.0D18 | Cardinal Components Inc. | CSM1 | 5MHz | ±50ppm |
| CSM1Z-A5B2C5-40-14.7456D18 | Cardinal Components Inc. | CSM1 | 14.7456MHz | ±50ppm |
| CSM1Z-A5B2C3-40-25.0D18-F | Cardinal Components Inc. | CSM1 | 25MHz | ±50ppm |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal Components Inc. | CSM1 | 16MHz | ±50ppm |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal Components Inc. | CSM1 | 20MHz | ±50ppm |
| CSM1Z-A1B2C3-90-8.0D18 | Cardinal Components Inc. | CSM1 | 8MHz | ±50ppm |
| CSM1Z-A5B2C5-40-11.0592D18 | Cardinal Components Inc. | CSM1 | 11.0592MHz | ±50ppm |
| CSM1Z-A0B2C3-50-15.360D18 | Cardinal Components Inc. | CSM1 | 15.36MHz | ±50ppm |
| CSM1Z-A0B2C3-50-19.6608D18 | Cardinal Components Inc. | CSM1 | 19.6608MHz | ±50ppm |
| CSM1Z-A5B2C3-40-14.7456D20 | Cardinal Components Inc. | CSM1 | 14.7456MHz | ±50ppm |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal Components Inc. | CSM1 | 13.5MHz | ±50ppm |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal Components Inc. | CSM1 | 16.257MHz | ±50ppm |
| CSM1Z-A5B2C3-40-24.576D18 | Cardinal Components Inc. | CSM1 | 24.576MHz | ±50ppm |
| CSM1Z-A0B2C3-50-16.000312D18 | Cardinal Components Inc. | CSM1 | 16.000312MHz | ±50ppm |
| CSM1Z-A0B2C3-50-18.0D18 | Cardinal Components Inc. | CSM1 | 18MHz | ±50ppm |
| CSM1Z-A0B2C3-200-3.6864D18 | Cardinal Components Inc. | CSM1 | 3.6864MHz | ±50ppm |
| CSM1Z-A5B2C3-200-3.6864D18 | Cardinal Components Inc. | CSM1 | 3.6864MHz | ±50ppm |
| CSM1Z-A0B2C3-150-4.9152D18 | Cardinal Components Inc. | CSM1 | 4.915MHz | ±50ppm |
| CSM1Z-A0B2C3-40-25.0D18 | Cardinal Components Inc. | CSM1 | 25MHz | ±50ppm |
| CSM1Z-A5B2C5-70-10.0D18 | Cardinal Components Inc. | CSM1 | 10MHz | ±50ppm |
| CSM1Z-A0B2C3-50-25.175D18 | Cardinal Components Inc. | CSM1 | 25.175MHz | ±50ppm |
| CSM1Z-A5B2C3-120-6.144D18 | Cardinal Components Inc. | CSM1 | 6.144MHz | ±50ppm |
| CSM1-A1B2C3-50-20.0D16 | Cardinal Components Inc. | CSM1 | 20MHz | ±50ppm |
| CSM1Z-A5B2C5-150-3.6864D18 | Cardinal Components Inc. | CSM1 | 3.6864MHz | ±50ppm |
| CSM1Z-A5B2C5-40-10.0D18 | Cardinal Components Inc. | CSM1 | 10MHz | ±50ppm |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal Components Inc. | CSM1 | 27MHz | ±50ppm |
| CSM1Z-A0B2C3-100-7.3728D18 | Cardinal Components Inc. | CSM1 | 7.3728MHz | ±50ppm |
| CSM1Z-A0B2C3-100-6.144D18 | Cardinal Components Inc. | CSM1 | 6.144MHz | ±50ppm |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal Components Inc. | CSM1 | 27MHz | ±50ppm |
| CSM1Z-A5B2C3-120-7.3728D18 | Cardinal Components Inc. | CSM1 | 7.3728MHz | ±50ppm |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal Components Inc. | CSM1 | 28.63636MHz | ±50ppm |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal Components Inc. | CSM1 | 9.216MHz | ±50ppm |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal Components Inc. | CSM1 | 6MHz | ±50ppm |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal Components Inc. | CSM1 | 7.3728MHz | ±50ppm |
