CS2012系列晶振,CS2012-A-32.768K-7-TR,Transko网络晶振,32.768KHZ,特兰斯科晶振,水晶振动子,欧美进口晶振,32.768KHZ音叉晶体,两脚贴片晶振,32.768KHZ贴片晶振,无源晶振,SMD晶振,尺寸2.0x1.2mm,频率32.768KHZ,负载7pF,耐高温晶振,低老化晶振,低损耗晶振,时钟晶振,数字显示晶振,收音机晶振,蜂窝电话晶振,智能手环晶振.
CS2012系列晶振,CS2012-A-32.768K-7-TR,Transko网络晶振,32.768KHZt特点:

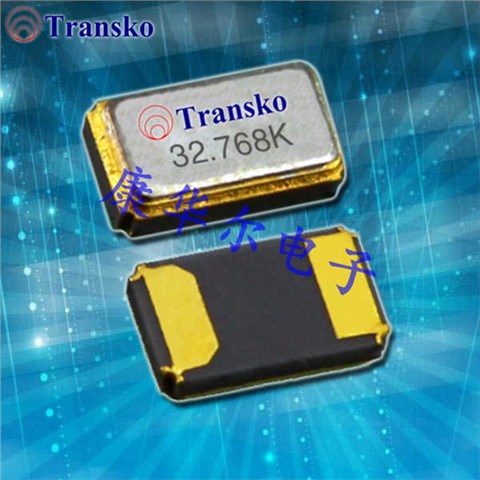

小型陶瓷SMD封装32.768K晶振
出色的耐热性
-40°C~85°C的工作温度

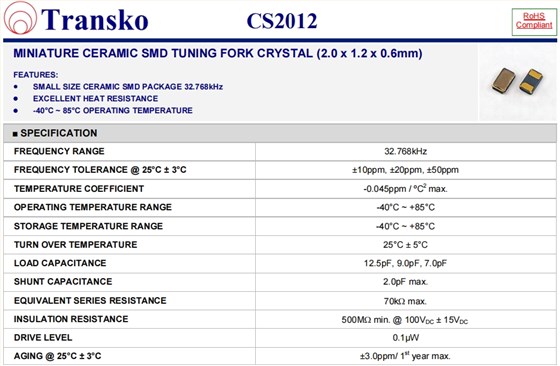

CS2012系列晶振,CS2012-A-32.768K-7-TR,Transko网络晶振,32.768KHZ 参数表
| . SPECIFICATION | |||||||||||||||||||||||||
| FREQUENCY RANGE | 32.768kHz | ||||||||||||||||||||||||
| FREQUENCY TOLERANCE @ 25°C ± 3°C | ±10ppm, ±20ppm, ±50ppm | ||||||||||||||||||||||||
| TEMPERATURE COEFFICIENT | -0.045ppm / ºC2max. | ||||||||||||||||||||||||
| OPERATING TEMPERATURE RANGE | -40°C ~ +85°C | ||||||||||||||||||||||||
| STORAGE TEMPERATURE RANGE | -40°C ~ +85°C | ||||||||||||||||||||||||
| TURN OVER TEMPERATURE | 25°C ± 5°C | ||||||||||||||||||||||||
| LOAD CAPACITANCE | 12.5pF, 9.0pF, 7.0pF | ||||||||||||||||||||||||
| SHUNT CAPACITANCE | 2.0pF max. | ||||||||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE | 70kΩ max. | ||||||||||||||||||||||||
| INSULATION RESISTANCE | 500MΩ min. @ 100VDC± 15VDC | ||||||||||||||||||||||||
| DRIVE LEVEL | 0.1µW | ||||||||||||||||||||||||
| AGING @ 25°C ± 3°C | ±3.0ppm/ 1styear max. | ||||||||||||||||||||||||

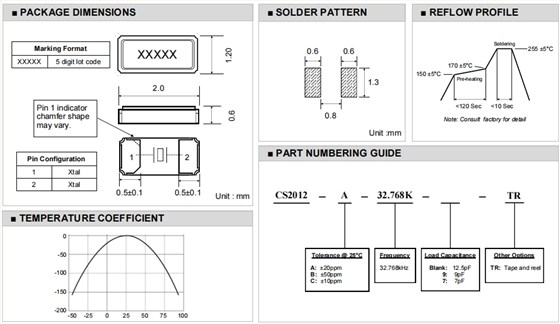

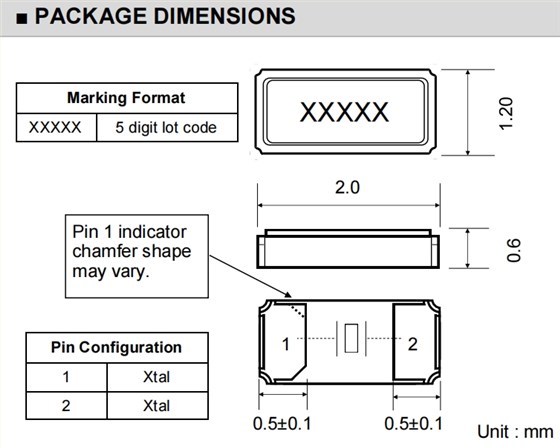

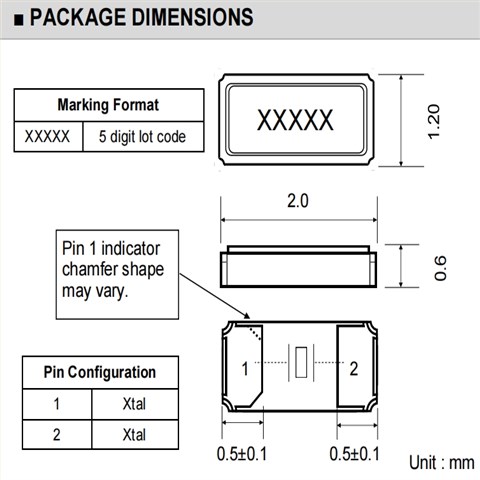

CS2012系列晶振,CS2012-A-32.768K-7-TR,Transko网络晶振,32.768KHZ尺寸图
