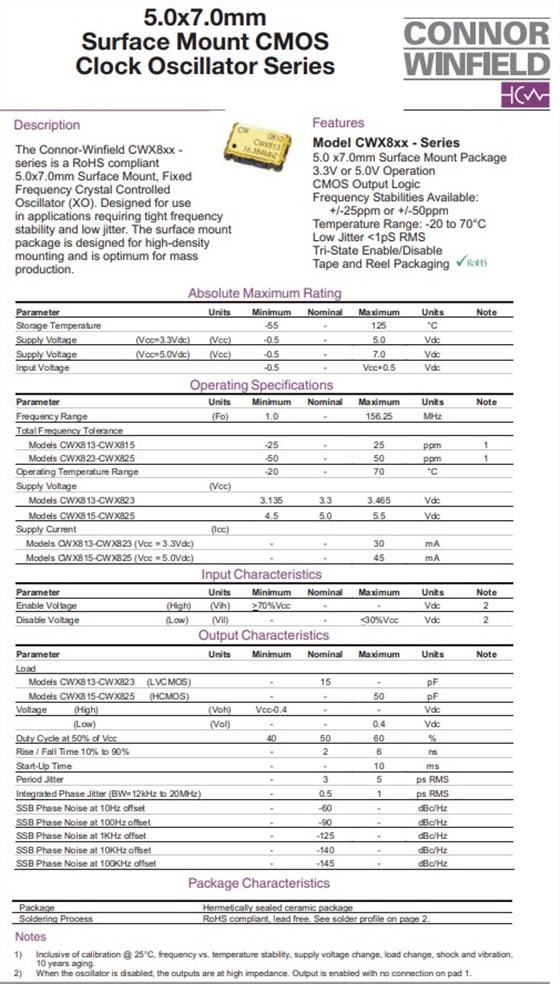

ConnorWinfield康纳温菲尔德晶振CWX8xx系列CWX825晶振，是一款小体积晶振尺寸5.0x7.0mm毫米表面贴装，四脚贴片晶振，有源晶振，固定频率晶体控制振荡器(XO)。3.3V或5.0V工作电压，CMOS输出逻辑，可用的频率稳定性: 低抖动< 1pS RMS 三态使能/禁用 胶带和卷轴包装 +/-25ppm或+/-50ppm，温度范围:-20℃至70℃。晶体振荡器为使用而设计在要求严格频率的应用中稳定性和低抖动。表面贴装封装设计用于高密度安装，是质量的最佳选择生产。符合RoHS标准，被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用。7050晶体振荡器CWX825-29.4912M适用于医疗设备应用
7050晶体振荡器CWX825-29.4912M适用于医疗设备应用，有源晶振需要电源，但不需要附加的电容。它内部含有起振器。通常接到CPU的一根引脚即可，小体积晶振有源晶振不需要DSP的内部振荡器,信号质量好,比较稳定,而且连接方式相对简单(主要是做好电源滤波,通常使用一个电容和电感构成的PI型滤波网络,输出端用一个小阻值的电阻过滤信号即可),不需要复杂的配置电路.有源晶振通常的用法:一脚悬空,二脚接地,三脚接输出,四脚接电压.
原厂代码
欧美进口晶振
型号
频率
工作温度
包装/封装
CWX825-1.544M
ConnorWinfield晶振
CWX825
1.544MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-1.8432M
ConnorWinfield晶振
CWX825
1.8432MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-3.6864M
ConnorWinfield晶振
CWX825
3.6864MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-4.0M
ConnorWinfield晶振
CWX825
4MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-7.3728M
ConnorWinfield晶振
CWX825
7.3728MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-8.0M
ConnorWinfield晶振
CWX825
8MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-10.0M
ConnorWinfield晶振
CWX825
10MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-12.0M
ConnorWinfield晶振
CWX825
12MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-12.288M
ConnorWinfield晶振
CWX825
12.288MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-14.31818M
ConnorWinfield晶振
CWX825
14.31818MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-15.36M
ConnorWinfield晶振
CWX825
15.36MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-16.0M
ConnorWinfield晶振
CWX825
16MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-16.384M
康纳温菲尔德晶振
CWX825
16.384MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-18.432M
ConnorWinfield晶振
CWX825
18.432MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-19.44M
ConnorWinfield晶振
CWX825
19.44MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-20.0M
ConnorWinfield晶振
CWX825
20MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-20.48M
ConnorWinfield晶振
CWX825
20.48MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-24.0M
ConnorWinfield晶振
CWX825
24MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-24.576M
ConnorWinfield晶振
CWX825
24.576MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-25.0M
ConnorWinfield晶振
CWX825
25MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-27.0M
ConnorWinfield晶振
CWX825
27MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-29.4912M
ConnorWinfield晶振
CWX825
29.4912MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-30.0M
ConnorWinfield晶振
CWX825
30MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-32.0M
ConnorWinfield晶振
CWX825
32MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-33.0M
ConnorWinfield晶振
CWX825
33MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-33.333M
ConnorWinfield晶振
CWX825
33.333MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-40.0M
ConnorWinfield晶振
CWX825
40MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-44.736M
ConnorWinfield晶振
CWX825
44.736MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-45.0M
ConnorWinfield晶振
CWX825
45MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-49.152M
石英晶振
CWX825
49.152MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-50.0M
ConnorWinfield晶振
CWX825
50MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-60.0M
ConnorWinfield晶振
CWX825
60MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-64.0M
ConnorWinfield晶振
CWX825
64MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-66.6666M
ConnorWinfield晶振
CWX825
66.6666MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-72.0M
ConnorWinfield晶振
CWX825
72MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-80.0M
ConnorWinfield晶振
CWX825
80MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-100.0M
ConnorWinfield晶振
CWX825
100MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-125.0M
ConnorWinfield晶振
CWX825
125MHz
-20°C ~ 70°C
4-SMD, No Lead
CWX825-156.25M
ConnorWinfield晶振
CWX825
156.25MHz
-20°C ~ 70°C
4-SMD, No Lead
